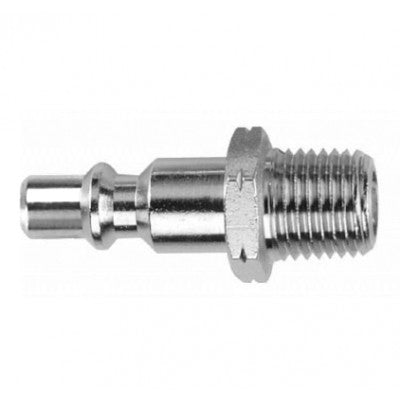

80271-04 AIGNEP | QC Series | 1/4" ARO Plug x 1/4" Male NPTF
80271-04 by AIGNEP | QC Series | 1/4" ARO Plug x 1/4" Male NPTF
80271-04 AIGNEP | QC Series | 1/4" ARO Plug x 1/4" Male NPTF

80271-04 by AIGNEP | QC Series | 1/4" ARO Plug x 1/4" Male NPTF

Save $0.01 Save $0.01
$1.33
$1.33 - $1.33
$1.33
$1.32
$1.32 - $1.32
$1.32
Specifications for Variant SKU: 80271-04 AIGNEP
Series: QC Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male ARO 210 QD Interchange, 1/4in Male NPTF
Material(s): Nickel-Plated Brass

1/4” ARO Male (BRASS)

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

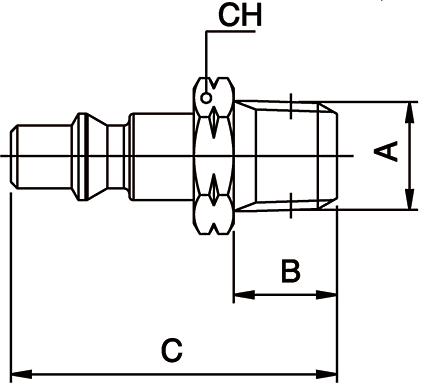

Product Number Seal Thread Type A B (IN) B CH C
80271-04 NBR 70 NPTF 1/4" 0.511" 13 mm 17 mm 40 mm
80271-06 NBR 70 NPTF 3/8" 0.511" 13 mm 19 mm 40 mm
80271-08 NBR 70 NPTF 1/2" 0.669" 17 mm 22 mm 45 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
