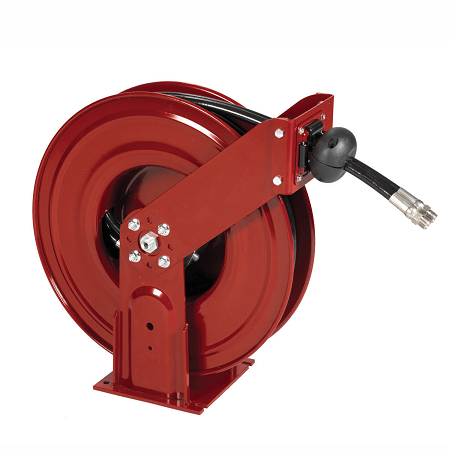

8081-K by Alemite | Narrow Double Post Reels | Fuel | Reel Inlet: 3/4" Male NPSM | Delivery Hose Outlet: 3/4" Male NPTF | Delivery Hose Specification: 3/4" x 30ft (317868-30) | Max Pressure: 300 PSI

8081-K by Alemite | Narrow Double Post Reels | Fuel | Reel Inlet: 3/4" Male NPSM | Delivery Hose Outlet: 3/4" Male NPTF | Delivery Hose Specification: 3/4" x 30ft (317868-30) | Max Pressure: 300 PSI

Save $875.06 Save $875.06
$1,962.15
$1,962.15 - $1,962.15
$1,962.15
$1,087.09
$1,087.09 - $1,087.09
$1,087.09

PRODUCT DESCRIPTION

Alemite Narrow Double Post Reels - Fuel
Specifications for Variant SKU: 8081-K Alemite
Applications,
  • Alemite Narrow Double Post Reels provide the rugged, reliable performance of an Alemite Reel, with a narrower design to fully optimize space efficiency. The dual arm design provides increased strength and stability in demanding off road applications.
Features,
  • Narrow Design - 8.5" wide, for better space utilization.
  • Superior Performance - Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
  • Anti-Lockout Design - Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
  • Corrosion Resistant - Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments.
  • Easy Installation and Maintenance - Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy.
  • Durable - Heavy metal arbor and dual arm design withstand extreme stress and eliminate breakage associated with non-metal and light weight metal arbors.
  • Adjustable and Versatile - 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space.
  • Compatibility - Grease, grease, air, water, fuel, hydraulic fluid
  • INCLUDED ITEMS,
  • Hose Reel, Hose, Hose Stop, Union & Connecting Hose
Dimensions,

Part Number Bare Reel Max Pressure Delivery Hose
Specification		 Reel Inlet Delivery Hose Outlet Weight
8081-K 7373 300 PSI 3/4" x 30' (317868-30) 3/4" NPSM(m) 3/4" NPTF(m) 75 Lb.
7373 7373 300 PSI NA 3/4" NPSM(m) NA 61 Lb.
