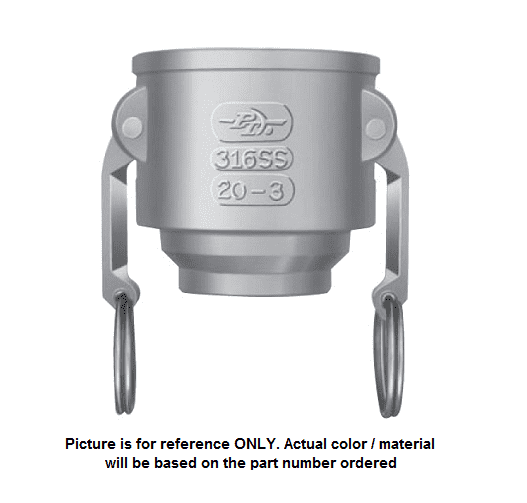

60628011 (80DWB) by PT-Coupling | 8" Coupler x Butt Weld for Schedule 40 Pipe | Aluminum

60628011 (80DWB) by PT-Coupling | 8" Coupler x Butt Weld for Schedule 40 Pipe | Aluminum

Save $29.05 Save $29.05
$261.41
$261.41 - $261.41
$261.41
$232.36
$232.36 - $232.36
$232.36
Specifications for Variant SKU: 60628011 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 8in Female Cam & Groove, 8in Weld End
Material(s): Aluminum

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Weld Fittings - Part DWB - Coupler x Butt Weld for Schedule 40 Pipe - Aluminum
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Size O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Max. Allowable
Working Press.
(PSI)*
12DWB 60621225 1-1/4" 6.86" 3.26" 1.25" 2.89" 250 PSI
15DWB 60621515 1-1/2" 7.16" 3.56" 1.54" 2.81" 250 PSI
20DWB 60622013 2" 7.54" 3.94" 1.75" 3.09" 250 PSI
30DWB 60623013 3" 9.56" 5.46" 2.83" 3.82" 200 PSI
40DWB 60624018 4" 10.66" 6.56" 3.50" 4.00" 150 PSI
50DWB 60625015 5" 11.67" 7.57" 4.50" 4.20" 75 PSI
60DWB 60626014 6" 16.26" 10.16" 5.50" 4.54" 75 PSI
80DWB 60628011 8" 18.23" 12.13" 7.50" 4.80" 50 PSI
100DWB 60629015 10" 20.66" 14.56" 9.40" 5.50" 50 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
