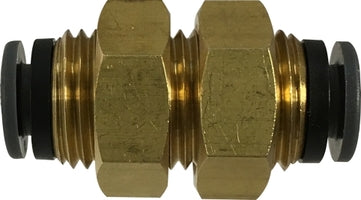

820800C Midland DOT Push-In Fitting - Bulkhead Union - 1/2" Tube OD x 1-12 Male UNF - Brass / Composite

820800C by Midland | DOT Push-In Fitting | Bulkhead Union | 1/2" Tube OD x 1-12 Male UNF | Brass / Composite

Save $1.92 Save $1.92
$17.29
$17.29 - $17.29
$17.29
$15.37
$15.37 - $15.37
$15.37

Midland Industries
Brass Fitting - D.O.T. Push-in Tube Fitting - Bulkhead Union - Brass / Composite

Meets D.O.T. FMVSS 49 CFR 571.106, SAE J2494-3 Requirements.

Inventory @ Manufacturers Warehouse: 35 Units
Specifications for Variant SKU: 820800C Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-to-Connect, 1/2in Push-to-Connect, Some Ends Match
Material(s): PBT, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applicable Specs & Approvals: D.O.T. FMVSS 49 571.106, SAE J2494-3

SPECIFICATIONS
Features:
  • One touch connection reduces installation time and cost.
  • Rugged ultraviolet and vibration resistant composite body.
Warnings:
  • Composite DOT push-to-connect fittings are designed only for use in applications where air is utilized as an operating fluid.
  • Fittings must be used in accordance with manufacturer and industry specifications.
  • They are not intended for use in environments exceeding 145 PSI or 140°F.
  • The Department of Transportation FMVSS 49CFR571-106 prohibits use of this type of fitting for connections between towed and towing vehicles or between a driveshaft and chassis.
  • Using Composite DOT fittings in a manner inconsistent with manufacturer specifications may result in serious injury or property damage.
  • Under no circumstances shall the supplier be liable to buyer for any consequential or incidental damages of any nature whatsoever arising from nonconformity of goods, defective goods, or delay in shipment or any other breach by seller.
1. Chuck Stainless Steel or Brass
2. Body Polybutylene Terephthalate (PBT), Brass
3/4. Tube seal, O-Ring Buna-N, Nitrile Rubber
5. Stud Brass
6. Sealant Flourine / Acrylic
7. Guide Stainless Steel or Polyacetal (Acetal)
8. Stabilization Ring Stainless Steel
9. Release Button Polyacetal, POM (Acetal)
10. Tube support Stainless Steel/ Brass
Part Number Tube OD Male UNF Approx. Weight
(Lbs.)
825320C 5/32" 1/2-20 0.07
820400C 1/4" 9/16-18 0.07
820600C 3/8" 7/8-14 0.19
820800C 1/2" 1-12 0.26
821000C 5/8" 1-1/8-12 0.42
