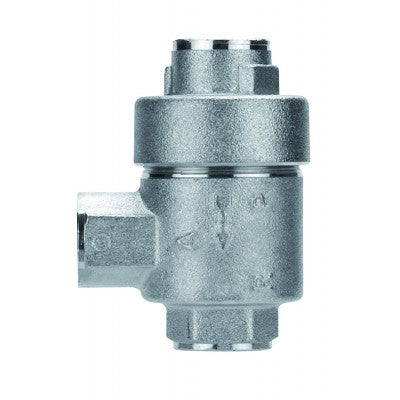

82650-16 AIGNEP | Functional (Flow Controls) Series | Quick Exhaust Valve | 1 Female NPTF
82650-16 by AIGNEP | Functional (Flow Controls) Series | Quick Exhaust Valve | 1 Female NPTF
82650-16 AIGNEP | Functional (Flow Controls) Series | Quick Exhaust Valve | 1 Female NPTF

82650-16 by AIGNEP | Functional (Flow Controls) Series | Quick Exhaust Valve | 1 Female NPTF

Save $1.29 Save $1.29
$129.20
$129.20 - $129.20
$129.20
$127.91
$127.91 - $127.91
$127.91
Specifications for Variant SKU: 82650-16 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female NPTF, 1in Female NPTF, Some Ends Match
Material(s): Nickel-Plated Brass

Quick Exhaust Valve

Pressure Rating: 0-150 PSIG
Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

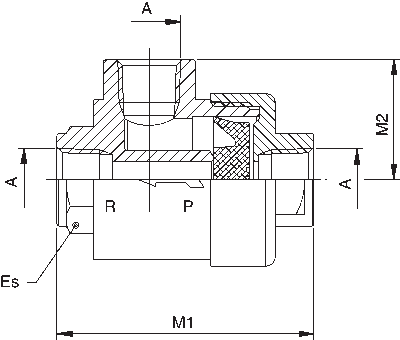

Product Number A NPTF Thread Type Es M1 M2
82650-02 1/8" NPTF 15 mm 42 mm 19.5 mm
82650-04 1/4" NPTF 19 mm 54 mm 25 mm
82650-06 3/8" NPTF 22 mm 60.5 mm 26.5 mm
82650-08 1/2" NPTF 26 mm 72 mm 32 mm
82650PL-12 3/4" NPTF 32 mm 88 mm 37 mm
82650-16 1" NPTF 46 mm 109 mm 48 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
