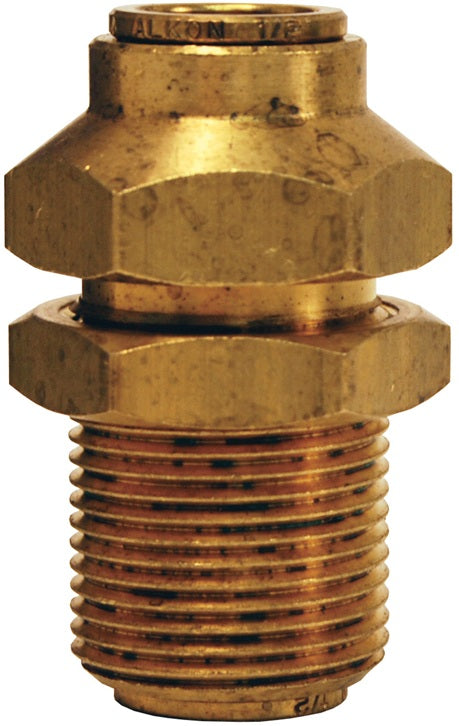

828 by Dixon Valve | Push-In Fitting | Bulkhead Union | 1/4" Tube OD x 1/2"-20 Male NPT | Forged Brass

828 by Dixon Valve | Push-In Fitting | Bulkhead Union | 1/4" Tube OD x 1/2"-20 Male NPT | Forged Brass

Save $1.31 Save $1.31
$11.75
$11.75 - $11.75
$11.75
$10.44
$10.44 - $10.44
$10.44

Dixon Valve & Coupling
Push-In Fitting | Bulkhead Union | Tube End x Male NPT
Specifications for Variant SKU: 828 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 1/2in Male NPT
Material(s): Brass
Use:
  • Suitable for vacuum service.
  • Working pressure: suitable for use up to the maximum working pressure of the plastic tubing used.
Features:
  • Positive seal: no leaks, after tubing is inserted, seal is made.
  • Secure tube retention: pulling on tubing only serves to tighten the connection.
  • Full flow design provides up to 60% more flow than conventional fittings with internal tube supports.
  • Supplied with gasket.
Construction:
  • Forged Brass
Specifications:
  • Temperature range: -10°F to 200°F (-23°C to 93°C)
Safety Notes:
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
Installation:
  • Saves up to 75% of assembly time versus the standard compression fittings.
  • Quick connect: simply push tubing in, no tools required.
  • Quick disconnect: hold two fingers on insert and pull tubing out, no tools required.
  • Reusable: connect and disconnect numerous times.
Part Number Tube O.D. Male NPT
824 1/8" 7/16"-20
825 5/32" 7/16"-20
828 1/4" 1/2"-20
8212 3/8" 3/4"-16
8216 1/2" 15/16"-16
