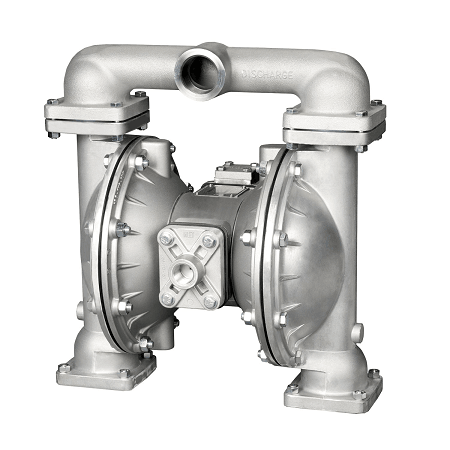

8329 by Alemite | Air Operated | 2" Diaphragm Pump | Inlet/Outlet: 2" | Air Inlet: 3/4" | 125 PSI | Aluminum/Buna

8329 by Alemite | Air Operated | 2" Diaphragm Pump | Inlet/Outlet: 2" | Air Inlet: 3/4" | 125 PSI | Aluminum/Buna

Save $19.51 Save $19.51
$1,830.34
$1,830.34 - $1,830.34
$1,830.34
$1,810.83
$1,810.83 - $1,810.83
$1,810.83

PRODUCT DESCRIPTION

Alemite Diaphragm Pump - Air Operated
Specifications for Variant SKU: 8329 Alemite
Applications:
  • Alemite Diaphragm Pumps are designed for both high volume transfer and dispensing a variety of low viscosity fluids including new oil, used oil, windshield washer fluid, antifreeze, and other materials. Refer to table below for specific pump compatibility.

Part Number Air inlet Material Inlet/Outlet Delivery Rate (per minute) Body Material Diaphragm Material Pressure Recommended Fluids
8322 1/4" 1/2" Diaphragm Pump 14 Gallon Poly Buna 100 PSI Windshield Washer Fluid, Antifreeze, New/Used Oil, Most Water Based Chemicals
8322-A 1/4" 1/2" Diaphragm Pump 15 Gallon Aluminum Buna 100 PSI New/Used Oil
8322-B 1/4" 1/2" Diaphragm Pump 14 Gallon Poly Santoprene 125 PSI Windshield Washer Fluid, Antifreeze, Soaps, Cleaning Fluid, Nonpetroleum Cleaning Chemicals
8322-D 1/4" 1/2" Diaphragm Pump 15 Gallon Poly PTFE 125 PSI More universally compatible with solvents, volatiles
8323 1/2" 1" Diaphragm Pump 45 Gallon Aluminum Buna 125 PSI New/Used Oil
8325 1/2" 1" Diaphragm Pump 45 Gallon Aluminum Buna 125 PSI Antifreeze, New/Used Oil (UL Listed)
8327 1/2" 1" Diaphragm Pump 45 Gallon Aluminum PTFE 125 PSI Antifreeze, New/Used Oil (UL Listed)
8324 3/4" 1-1/2" Diaphragm Pump 106 Gallon Aluminum Buna 125 PSI Antifreeze, New/Used Oil
8329 3/4" 2" Diaphragm Pump 150 Gallon Aluminum Buna 125 PSI Antifreeze, New/Used Oil
8340 3/4" 3" Diaphragm Pump 235 Gallon Aluminum Buna 125 PSI Antifreeze, New/Used Oil
