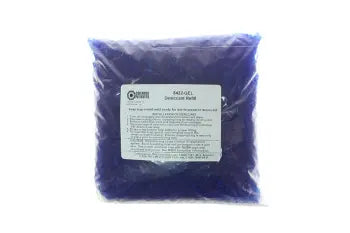

8422-GEL by Coilhose | Desiccant Gel Refill

8422-GEL by Coilhose | Desiccant Gel Refill

Save $5.98 Save $5.98
$53.81
$53.81 - $53.81
$53.81
$47.83
$47.83 - $47.83
$47.83
Coilhose Pneumatics - Filters, Regulators & Lubricators - Desiccant Air Dryers
Specifications for Variant SKU: 8422-GEL Coilhose
Overview:
  • The Desiccant Air Dryers collect the smallest moisture mists. Use of standard air filters and coalescing filters is highly recommended to achieve exceptionally dry air. Desiccant beads change color from blue to pink to indicate absorbing capacity (blue = dry, pink = wet). Beads in standard version are also reusable.
Features:
  • Pressure drop of less than 1 PSI.
  • No additional power source required.
  • Standard version is easy to service. In-Line version is disposable.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

  STANDARD IN-LINE
Max. Supply Pressure 150 PSI 125 PSI
Max. Operating Temp 125° F 130° F
Max. Flow Capacity 10 SCFM 15 SCFM
Materials
Body: Zinc Die Cast Polycarbonate
Bowl: Polycarbonate Polycarbonate
Bowl Guard: Steel Nylon
Dimensions and Weights
Height: 12.25" 3-3/4"
Width (port to port): 4.5" 1-11/16"
Weight (with desiccant): .6.8 lbs 2.8 oz.

Model Description
Standard Version
8422 1/4" Port Size
8422-6 1/4" Port Size, Polycarbonate Bowl
8422-7 1/4" Port Size, Steel Bowl Guard
8422-GEL Desiccant Gel Refill

8423 3/8" Port Size

8424 1/2" Port Size
In-Line Version
4042 1/4" Port Size
