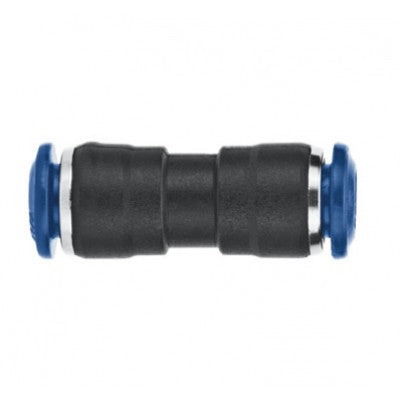

85040-05-04 AIGNEP | 85 Series | Union Composite | 5/16" Tube x 1/4" Tube | Pack of 10

85040-05-04 by AIGNEP | 85 Series | Union Composite | 5/16" Tube x 1/4" Tube | Pack of 10

Save $0.14

$13.78

$13.78 - $13.78

$13.78

$13.64

$13.64 - $13.64

$13.64

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 85040-05-04 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	Straight
Ends Configuration:	5/16in Push-to-Connect, 1/4in Push-to-Connect
Material(s):	Nylon

Union Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon

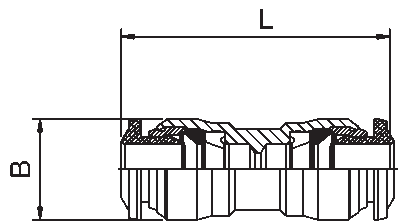

Product Number	Tube	B (IN)	B	L
85040-02	1/8" x 1/8"	0.339"	10 mm	28 mm
85040-53	5/32" x 5/32"	0.339"	10 mm	30.5 mm
85040-04	1/4" x 1/4"	0.492"	12.5 mm	35 mm
85040-05	5/16" x 5/16"	0.551"	14 mm	37 mm
85040-06	3/8" x 3/8"	0.669"	17 mm	45 mm
85040-08	1/2" x 1/2"	0.787"	20 mm	49 mm

Unequal Union Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon

Product Number	Tube	B (IN)	B	L
85040-04-53	1/4" x 5/32"	0.492"	12.5 mm	34.5 mm
85040-05-04	5/16" x 1/4"	0.551"	14 mm	38 mm
85040-06-04	3/8" x 1/4"	0.669"	17 mm	44.5 mm
85040-06-05	3/8" x 5/16"	0.669"	17 mm	44.5 mm
85040-08-06	1/2" x 3/8"	0.787"	20 mm	50 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
