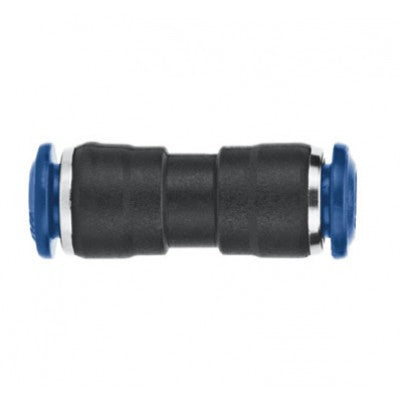

85040-06-05 by AIGNEP | 85 Series | Union Composite | 3/8" Tube x 5/16" Tube | Pack of 10

Save $0.17 Save $0.17
Original price $15.86
Original price $15.86 - Original price $15.86
Original price $15.86
Current price $15.69
$15.69 - $15.69
Current price $15.69

Package Quantity: 10 ea

Specifications for Variant SKU: 85040-06-05 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Push-to-Connect, 5/16in Push-to-Connect
Material(s): Nylon

Union Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon

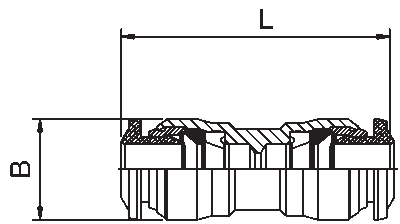

Product Number Tube B (IN) B L
85040-02 1/8" x 1/8" 0.339" 10 mm 28 mm
85040-53 5/32" x 5/32" 0.339" 10 mm 30.5 mm
85040-04 1/4" x 1/4" 0.492" 12.5 mm 35 mm
85040-05 5/16" x 5/16" 0.551" 14 mm 37 mm
85040-06 3/8" x 3/8" 0.669" 17 mm 45 mm
85040-08 1/2" x 1/2" 0.787" 20 mm 49 mm

Unequal Union Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon
Product Number Tube B (IN) B L
85040-04-53 1/4" x 5/32" 0.492" 12.5 mm 34.5 mm
85040-05-04 5/16" x 1/4" 0.551" 14 mm 38 mm
85040-06-04 3/8" x 1/4" 0.669" 17 mm 44.5 mm
85040-06-05 3/8" x 5/16" 0.669" 17 mm 44.5 mm
85040-08-06 1/2" x 3/8" 0.787" 20 mm 50 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
