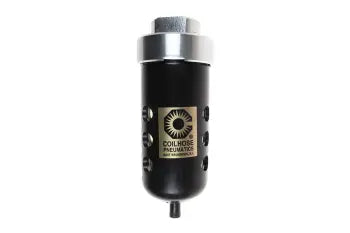

8514 by Coilhose | Mechanical Condensate Drain with Polycarbonate Bowl and Plastic Guard

8514 by Coilhose | Mechanical Condensate Drain with Polycarbonate Bowl and Plastic Guard

Save $9.88 Save $9.88
$88.91
$88.91 - $88.91
$88.91
$79.03
$79.03 - $79.03
$79.03
Coilhose Pneumatics - Filters, Regulators & Lubricators - Mechanical Condensate Drains
Specifications for Variant SKU: 8514 Coilhose
Material(s): Aluminum, Plastic, Zinc, Polycarbonate
Overview:
  • Mechanical Condensate Drains are useful for the automatic removal of moisture from drop legs, and after coolers, compressors and other devices. A manual override feature permits draining between automatic drain times. The 1/2" FPT is standard.
Features:
  • Float controlled valve.
  • Line pressure forces moisture escape.
  • Manual operation possible with quick return to automatic operation.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Maximum Supply Pressure: Plastic Bowl: 150 PSI Metal Bowl:250 PSI Maximum Operating Temp.: 120° F 250° F
Materials: Body: Aluminum Bowl: Transparent Polycarbonate w/ High Impact Plastic Guard Metal Bowl: Zinc Die Cast Float Assembly: Plastic with Stainless Steel Internals Dimensions: Height: 5-3/4" Diameter: 2-1/8" Weight: 3/4 lbs. Bowl Volume: 3.8 oz.

Model Description
8514 Mechanical Drain with Polycarbonate Bowl and Plastic Guard
8514M Mechanical Drain with Metal Bowl
