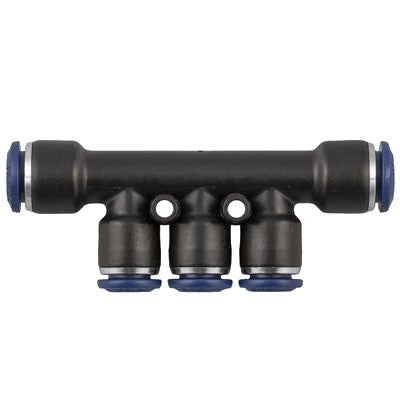

85350-05-53 AIGNEP | 85 Series | Reducing Manifold | 5/16" Tube x 5/32" Tube | Pack of 10
85350-05-53 by AIGNEP | 85 Series | Reducing Manifold | 5/16" Tube x 5/32" Tube | Pack of 10
85350-05-53 AIGNEP | 85 Series | Reducing Manifold | 5/16" Tube x 5/32" Tube | Pack of 10

85350-05-53 by AIGNEP | 85 Series | Reducing Manifold | 5/16" Tube x 5/32" Tube | Pack of 10

Save $0.40 Save $0.40
$39.41
$39.41 - $39.41
$39.41
$39.01
$39.01 - $39.01
$39.01

Package Quantity: 10 ea

Specifications for Variant SKU: 85350-05-53 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): Manifold
Ends Configuration: 5/16in Push-to-Connect, 5/32in Push-to-Connect
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber

Reduction Manifold

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon
Thread Seal: NBR 70

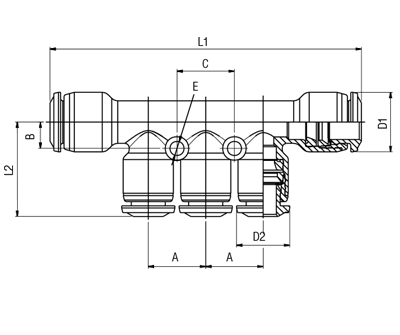

Product Number Tube A B L1 L2 C D1 D2 E
85350-05-53 5/16" - 5/32" 13.5 mm 6 mm 73 mm 21.8 mm 13.5 mm 14 mm 12 mm 3.3 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
