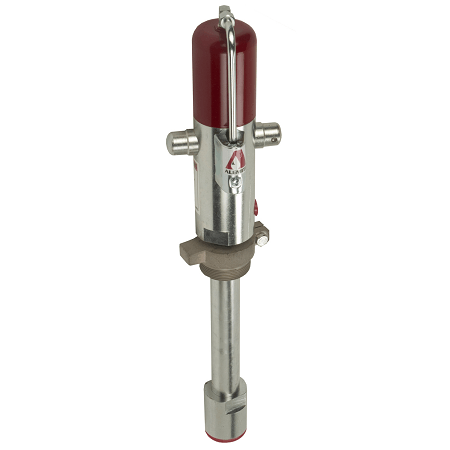

8568-A4 by Alemite | Oil Pump | Pneumatic - Standard Duty | Drum Size: Stub | Material Inlet: 1-1/2" Female NPTF | Material Outlet: 3/8" Female NPTF

8568-A4 by Alemite | Oil Pump | Pneumatic - Standard Duty | Drum Size: Stub | Material Inlet: 1-1/2" Female NPTF | Material Outlet: 3/8" Female NPTF

Save $22.64 Save $22.64
$2,123.29
$2,123.29 - $2,123.29
$2,123.29
$2,100.65
$2,100.65 - $2,100.65
$2,100.65

PRODUCT DESCRIPTION

Alemite Oil Pumps - Pneumatic Ram - Standard Duty
Specifications for Variant SKU: 8568-A4 Alemite
Applications:
  • Alemite Oil Pumps are ideal for applications where fluids are piped to multiple outlets. Combined with Alemite Hose Reels, Dispensing Valves and Meters, Alemite Oil Pumps deliver motor oils, gear oils, cutting oils, hydraulic oils, machine coolants, automatic transmission fluids and a wide range of petroleum based fluids from tanks, drums, totes and pails.
  • Alemite Oil Pumps can be used for bulk transfer or direct delivery from the original container.
Features:
  • Alemite H-Pumps are designed for medium pressure industrial applications, featuring exceptional reliability and service life.
  • 2-7/16" diameter air motor
  • Handles 10, 20 and 30W oils
  • Will mount to 1-1/2" suction tube from remote tank
  • Double toggle air valve trip mechanism prevents binding or stalling
  • Corrosion resistant chrome finish on piston rods reduces packing wear
  • Center flow, micro-lapped high pressure air valve provides very long life
  • Self aligning, heavy acme threads provide safely locked linkage
  • Requires appropriate downtube
343086 Package Includes:
  • 4:1 Ratio Pump (8568-A4)
  • Drum Dolly (316315-5)
  • Electronic Meter (3673)
  • 16 gal. Cover (338977)
  • 7' Material Hose (317813-7)
  • Filter/Regulator (7936)

Part Number Drum Size Material Inlet Material Outlet Pump Ratio Delivery Bung Adapter Weight
8568-A4 Stub 1-1/2" NPTF(f) 3/8" NPTF(f) 4:1 3 gpm 326750 14 Lb.

Alemite | SKF

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
