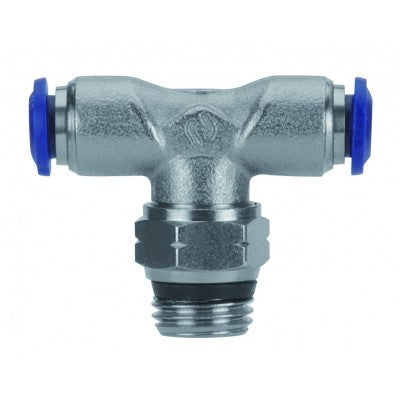

87210-06-08 AIGNEP | 87 / 88 Series | Swivel Male Branch Tee | 3/8" Tube x 1/2" Swift-Fit Male | Pack of 10

87210-06-08 by AIGNEP | 87 / 88 Series | Swivel Male Branch | 3/8" Tube x 1/2" Swift-Fit Male | Tee | Pack of 10

Save $0.63

$62.67

$62.67 - $62.67

$62.67

$62.04

$62.04 - $62.04

$62.04

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: 87210-06-08 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Tee
Ends Configuration:	3/8in Push-to-Connect, 1/2in Male Swift-Fit
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Branch Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

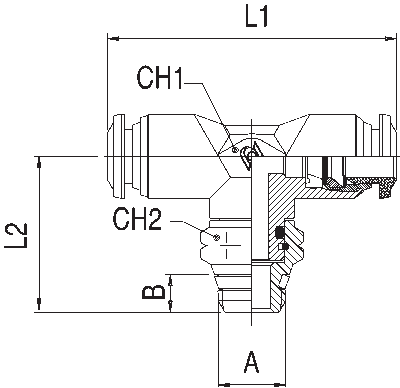

Tube	A	B (IN)	B	L1	L2
87210-02-02	1/8"	1/8"	0.217"	5.5 mm	33 mm	21.5 mm
87210-02-04	1/8"	1/4"	0.276"	7 mm	33 mm	25.5 mm
87210-53-02	5/32"	1/8"	0.217"	5.5 mm	34 mm	21.5 mm
87210-53-04	5/32"	1/4"	0.276"	7 mm	33 mm	25.5 mm
87210-04-02	1/4"	1/8"	0.217"	5.5 mm	42.5 mm	23.5 mm
87210-04-04	1/4"	1/4"	0.276"	7 mm	42.5 mm	27 mm
87210-04-06	1/4"	3/8"	0.295"	7.5 mm	53 mm	28 mm
87210-06-02	3/8"	1/8"	0.215"	5.5 mm	52 mm	27.5 mm
87210-06-04	3/8"	1/4"	0.275"	7 mm	53 mm	30 mm
87210-06-06	3/8"	3/8"	0.295"	7.5 mm	53 mm	30 mm
87210-06-08	3/8"	1/2"	0.354"	9 mm	53 mm	33 mm
87210-08-04	1/2"	1/4"	0.276"	7 mm	61 mm	31.5 mm
87210-08-06	1/2"	3/8"	0.295"	7.5 mm	61 mm	33 mm
87210-08-08	1/2"	1/2"	0.354"	9 mm	61 mm	36 mm
