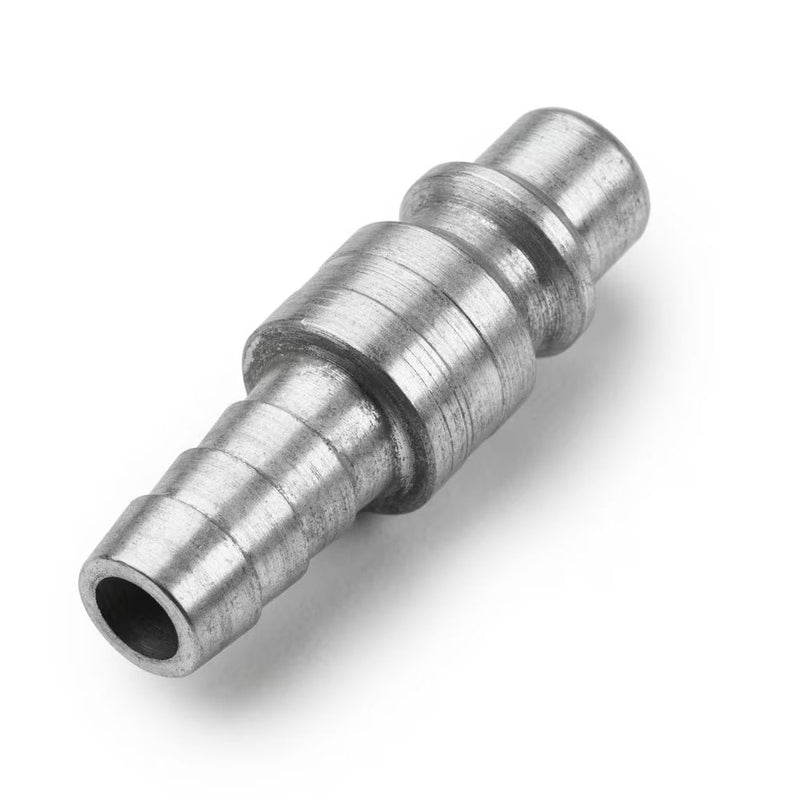

9085 17 06 by Parker | Legris Plug Quick Disconnect | 6 mm Barb | 58 mm Length | Nickel-Plated Steel | Pack of 5

Save $27.20

$68.00

$68.00 - $68.00

$68.00

$40.80

$40.80 - $40.80

$40.80

by Parker Hannifin
Series 17 - Brass/Steel:17SFTF Plug without valve, Hose Barb

Package Quantity: 5 Units

Specifications for Variant SKU: 9085 17 06 Parker \| 5 \|
Series:	Series 17
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Steel
Special Properties:	Slim, Lightweight

Series 17 - Brass/Steel Series:	Brass/steel industrial coupling with British profile specifically suited to compressed air applications in industry. Coupling system with single hand operation. High Flow valve for optimum flow and low pressure drop. Versatile due to slim design and light weight. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Nickel-Plated Brass/Steel Plug: Plated Steel Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	890 Nl/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	11 l/min. (Pressure dop 0.5 bar)


Part Number	A	L	L1	D
9085 17 06	6 mm	58 mm	33 mm	12 mm
