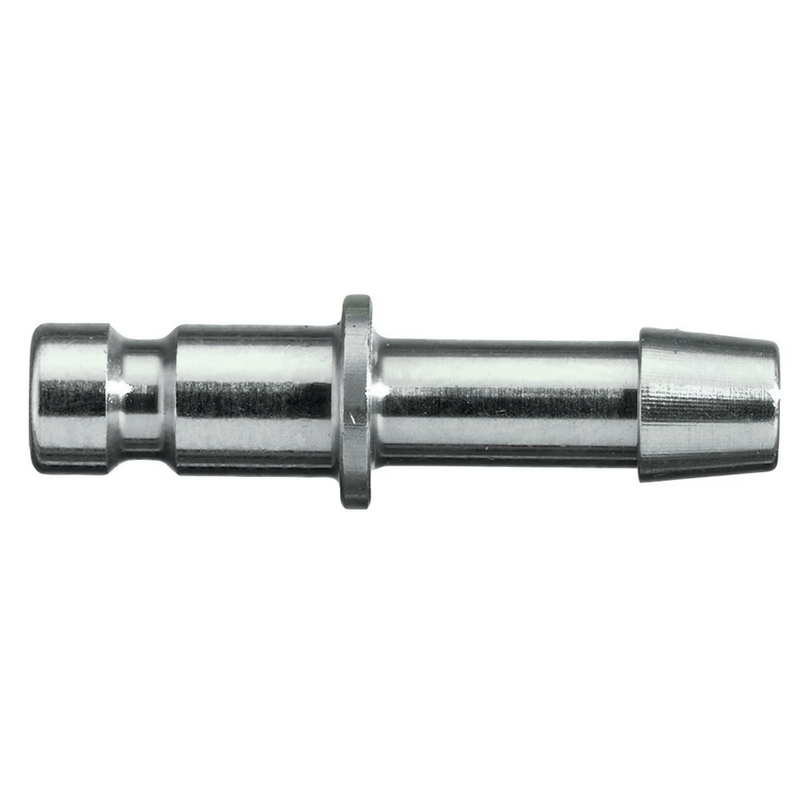

9085 20 03 by Parker | Legris Plug Quick Disconnect | 3mm Hose Barb | 24mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $13.55

$33.88

$33.88 - $33.88

$33.88

$20.33

$20.33 - $20.33

$20.33

by Parker Hannifin
Series 20 - Brass/Steel:9085 Plug without valve, Hose Barb

Package Quantity: 5 Units

Specifications for Variant SKU: 9085 20 03 Parker \| 5 \|
Series:	20 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Series 20 - Brass/Steel Series: Single Shut-Off	Mini Industrial coupling with internationally used profile. Frequent use in medical technology and chemistry/pharmacy. Coupling system with single-hand operation. Wide range of applications with different media. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Brass Plug: Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	165 Nl/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	1.5 l/min. (Pressure dop 0.5 bar)


Part Number	A	L	L1	D	Kg
9085 20 03	3 mm	24 mm	13 mm	7 mm	.002 Kg
9085 20 05	5 mm	22 mm	13 mm	9 mm	.0045 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
