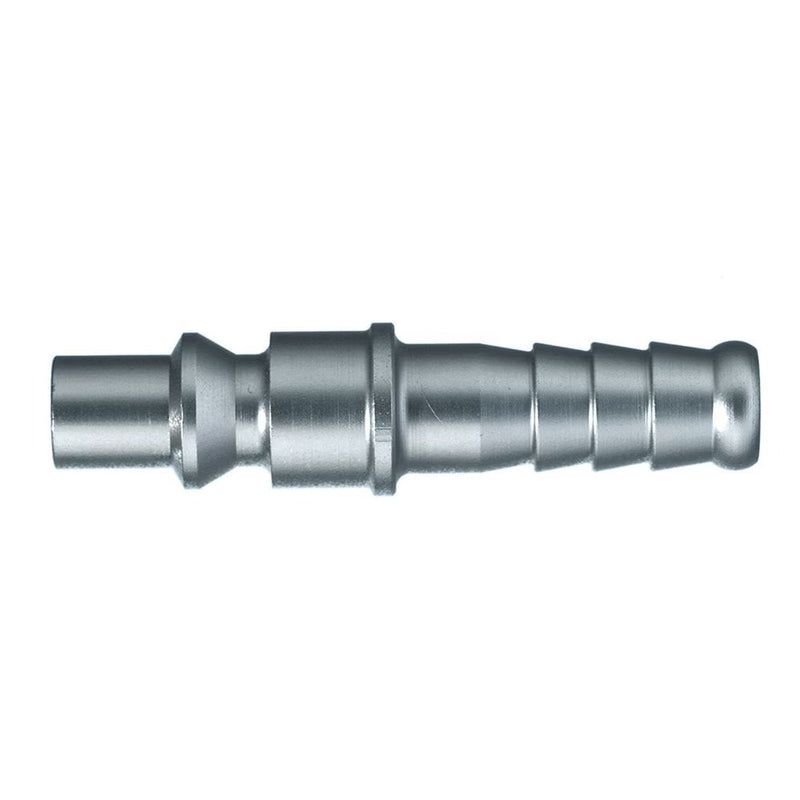

9085 22 06 by Parker | Legris Plug Quick Disconnect | 6 mm Hose Barb | 49 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $16.31

$40.78

$40.78 - $40.78

$40.78

$24.47

$24.47 - $24.47

$24.47

by Parker Hannifin
Series 14 - Brass/Steel:9085 Plug without valve, Hose Barb

Package Quantity: 5 Units

Specifications for Variant SKU: 9085 22 06 Parker \| 5 \|
Series:	14 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Series 14 - Brass/Steel Series: Single Shut-Off	Robust brass coupling with numerous connections options. Preferred application is the compressed air technology. Also particularly suited to use with water due to the brass valve. Coupling system with single-hand operation. Plug design optimized through greater insert depth. Available on request: in brass material with nickel-plating with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Nickel-Plated Brass Plug: Nickel-Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	660 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	9.1 l/min. (Pressure dop 0.5 bar)


Part Number	A	L	L1	D
9085 22 06	6 mm	49 mm	25 mm	12 mm
9085 22 10	10 mm	49 mm	25 mm	12 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
