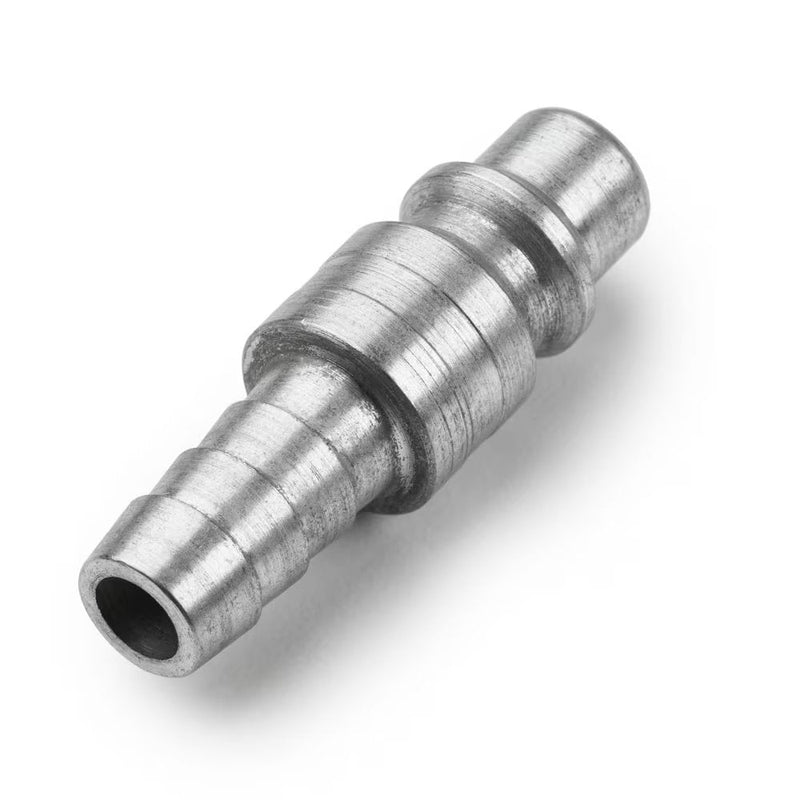

9085 23 10 by Parker | Legris Plug Quick Disconnect | 10 mm Hose Barb | 51 mm Length | Straight | Nickel-Plated Steel | Pack of 5

Save $11.29

$28.22

$28.22 - $28.22

$28.22

$16.93

$16.93 - $16.93

$16.93

by Parker Hannifin
Series 24 - Brass/Steel:9085 Plug without valve, Hose Barb

Package Quantity: 5 Units

Specifications for Variant SKU: 9085 23 10 Parker \| 5 \|
Series:	Series 23
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Steel
Special Properties:	Vibration Resistance

Series 24 - Brass/Steel Series: Single Shut-Off	1/4" Industrial brass coupling according to ISO 6150 B and US MIL-SPEC 4109. Coupling system with single-hand operation, which stands out for its solid brass design and corresponding sleeve design. Hardened steel plug counters and effects of external forces. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Brass Plug: Nickel-Plated Steel or Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	820 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	7.4 l/min. (Pressure dop 0.5 bar)


Part Number	A	L	L1	D
9085 23 08	6 mm	51 mm	25 mm	14 mm
9085 23 10	10 mm	51 mm	25 mm	14 mm
9085 23 56	1/4"	1.99"	.93"	-
9085 23 60	3/8"	1.99"	.93"	-

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
