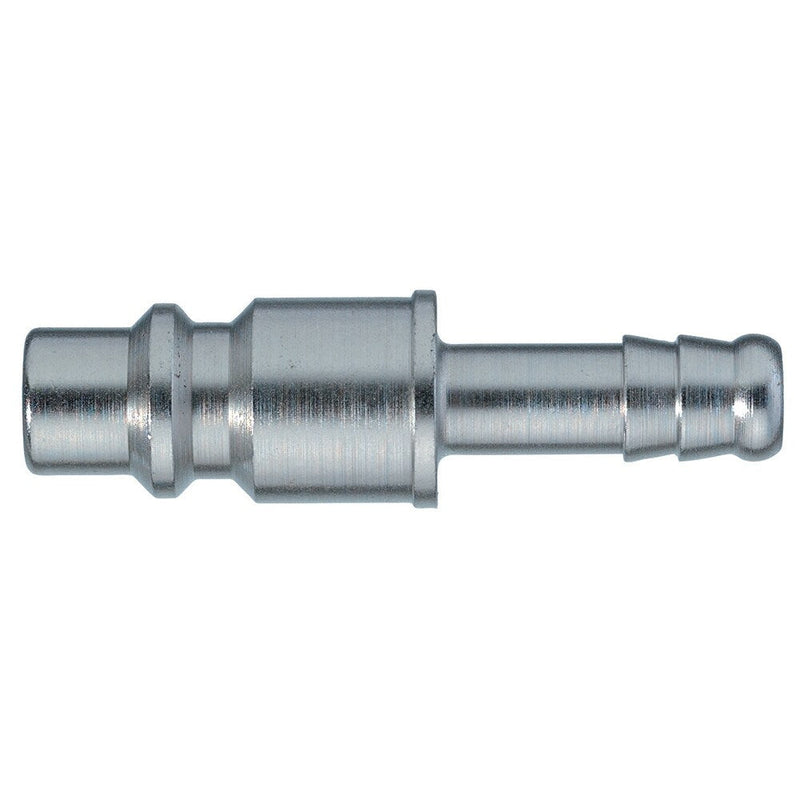

9085 30 08 by Parker | Legris Plug Quick Disconnect | 8mm Hose Barb | 55mm Length | Nickel-Plated Steel | Pack of 10

Save $58.49

$146.22

$146.22 - $146.22

$146.22

$87.73

$87.73 - $87.73

$87.73

by Parker Hannifin
Series 30 - Brass/Steel:9085 Plug without valve, Hose Barb

Package Quantity: 10 Units

Specifications for Variant SKU: 9085 30 08 Parker \| 10 \|
Series:	30 Series
Shape (Orientation):	No Orientation
Material(s):	Nickel-Plated Steel
Special Properties:	Ergonomic

Series 30 - Brass/Steel Series: Single Shut-Off	Steel coupling 3/8" according to ISO 6150 B and US MIL-SPEC 4109. Very robust design with steel valve bodies. The high insertion depth guarantees by an optimized plug guidance. Available on request: in brass material with nickel plating with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Brass/Steel Plug: Nickel Plated Steel Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	1.050 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	14 l/min. (Pressure dop 0.5 bar)


Part Number	A	L	L1	D
9085 30 08	8 mm	55 mm	25 mm	16 mm
9085 30 60	5/16"	-	-	-
9085 30 62	3/8"	-	-	-
