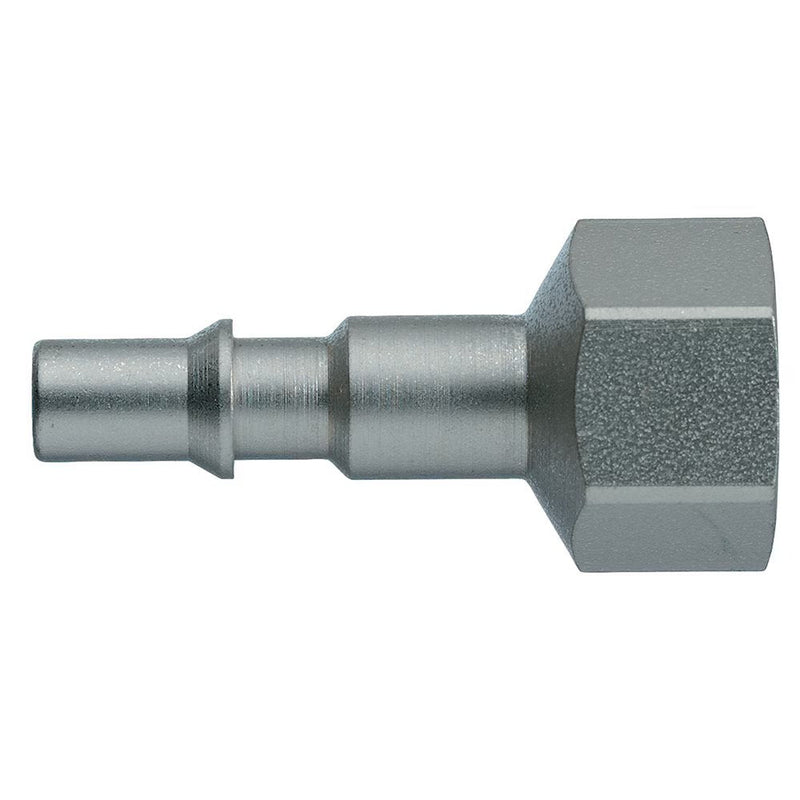

9086 18 13 by Parker | Legris Plug Quick Disconnect | 1/4" Female BSPP Thread | 17 mm Hex | 43 mm Length | Straight | Nickel-Plated Steel | Pack of 5

Save $33.02

$82.55

$82.55 - $82.55

$82.55

$49.53

$49.53 - $49.53

$49.53

by Parker Hannifin
Series 18 - Brass/Steel:9086 Plug without valve, Female Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 9086 18 13 Parker \| 5 \|
Series:	18 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Series 18 - Brass/Steel Series: Single Shut-Off	Robust industrial coupling according to ISO 6150 C. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. The steel sleeve counters oscillating forces. System has limited use for liquids (steel sleeve/zinc die cast valve). The high insertion depth guarantees by an optimized plug guidance. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Nickel-Plated Brass / steel Plug: Nickel-Plated Steel Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	970 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	12.7 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1
9086 18 13	1/4"	17 mm	43 mm	9 mm
