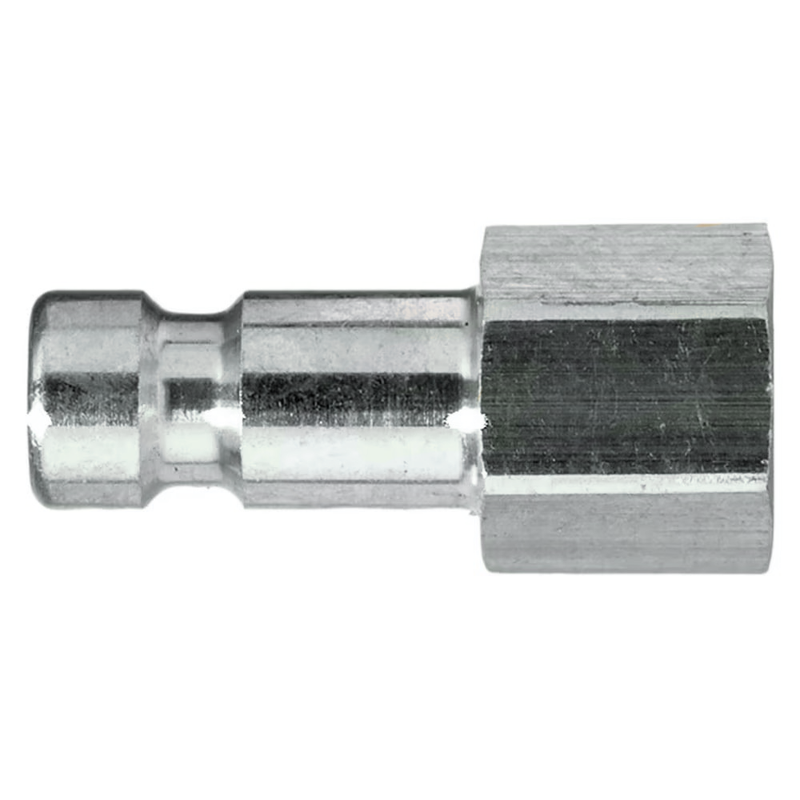

9086 20 10 by Parker | Legris Plug Quick Disconnect | 1/8" Female BSPP Thread | 12 mm Hex | 19 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $31.11

$77.78

$77.78 - $77.78

$77.78

$46.67

$46.67 - $46.67

$46.67

by Parker Hannifin
Series 20 - Brass/Steel:9086 Plug without valve, Female Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 9086 20 10 Parker \| 5 \|
Series:	20 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Series 20 - Brass/Steel Series: Single Shut-Off	Mini Industrial coupling with internationally used profile. Frequent use in medical technology and chemistry/pharmacy. Coupling system with single-hand operation. Wide range of applications with different media. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Brass Plug: Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	165 Nl/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	1.5 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1	D
9086 20 10	1/8"	12 mm	19 mm	7 mm	.006 Kg
