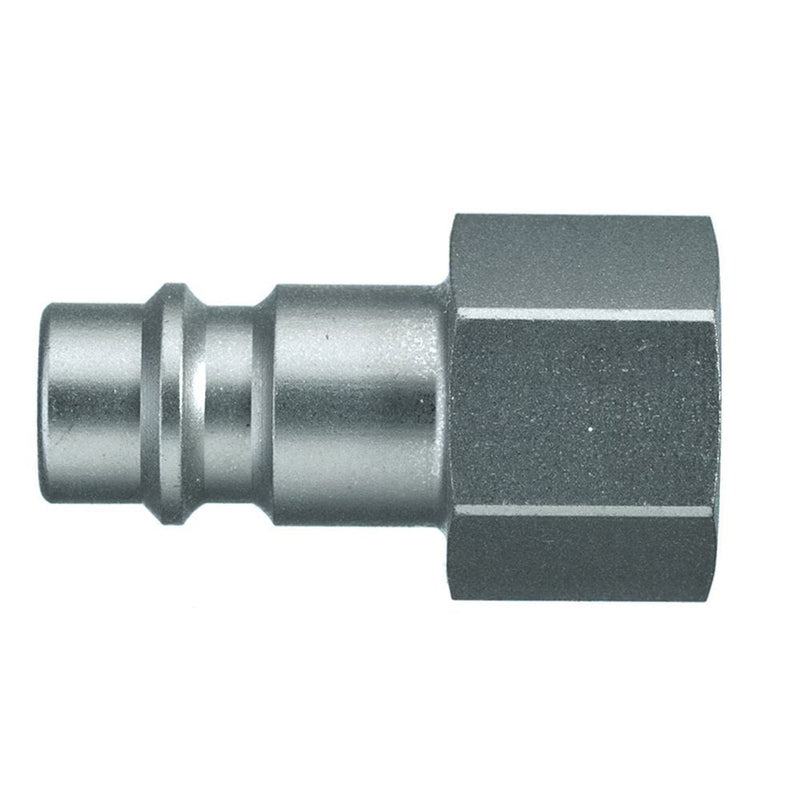

9086 25 13 by Parker | Legris Plug Quick Disconnect | 1/4" Female BSPP Thread | 17 mm Hex | 38.5 mm Length | Straight | Zinc-Plated Steel | Pack of 10

$66.07 - $66.07

$66.07

$90.00

$90.00 - $90.00

$90.00

by Parker Hannifin
Series 25 - Brass/Steel:9086 Plug without valve, Female Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 9086 25 13 Parker \| 10 \|
Series:	Series 25
Shape (Orientation):	Straight
Material(s):	Zinc-Plated Steel

Series 25 - Brass/Steel Series: Single Shut-Off	Universal industrial coupling with European standard profile. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. The series stands out for its robust design and long service life even with the harshest use. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Nickel-Plated Brass/Steel Plug: Zinc Plated Steel Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	1.800 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	28 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1
9086 25 13	1/4"	17 mm	38.5 mm	12 mm
9086 25 17	3/8"	19 mm	39.5 mm	12 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
