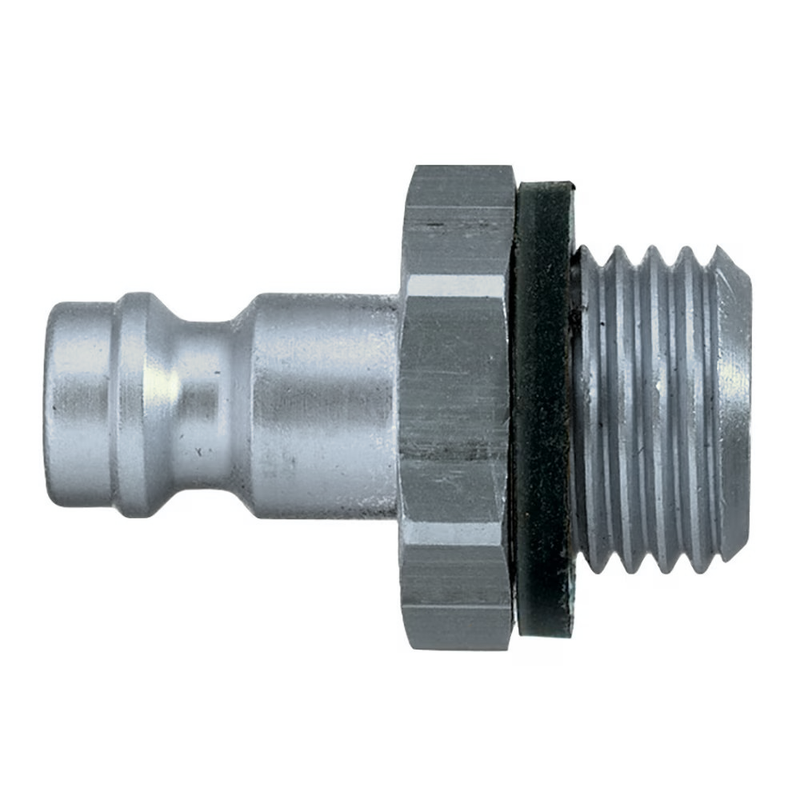

9087 21 13 by Parker | Legris Plug Quick Disconnect | 1/4" Male BSPP Thread | 17 mm Hex | 28 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $2.07

$76.47

$76.47 - $76.47

$76.47

$74.40

$74.40 - $74.40

$74.40

by Parker Hannifin
Series 21 - Brass/Steel:9087 Plug without valve, Male Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 9087 21 13 Parker \| 10 \|
Series:	21 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Series 21 - Brass/Steel Series: Single Shut-Off	Mini industrial coupling with the world's most popular profile in this nominal diameter. Above average flow performance for liquid and gaseous media. Coupling system with single-hands operation. Small dimensions and large bandwidth in materials and valve variants. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Nickel-Plated Brass Plug: Nickel-Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	550 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	7 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1	Kg
9087 21 13	1/4"	17 mm	28 mm	9 mm	.018 Kg
