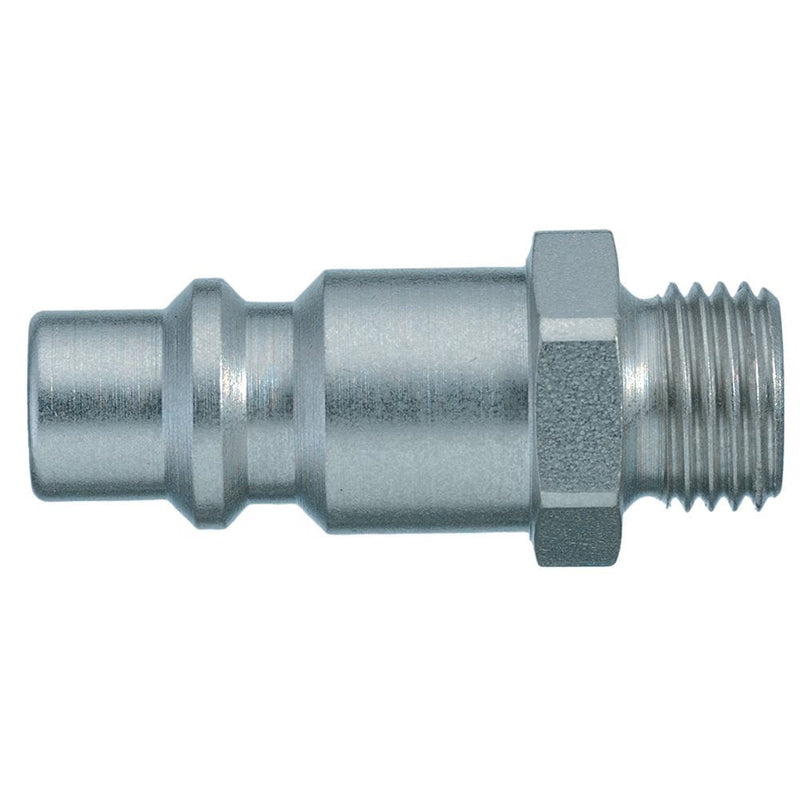

9087 30 21 by Parker | Legris Plug Quick Disconnect | 1/2" Male BSPP Thread | 24 mm Hex | 46 mm Length | Nickel-Plated Steel | Pack of 5

Save $35.73

$89.33

$89.33 - $89.33

$89.33

$53.60

$53.60 - $53.60

$53.60

by Parker Hannifin
Series 30 - Brass/Steel:9087 Plug without valve, Male Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 9087 30 21 Parker \| 5 \|
Series:	30 Series
Shape (Orientation):	No Orientation
Material(s):	Nickel-Plated Steel
Special Properties:	Ergonomic

Series 30 - Brass/Steel Series: Single Shut-Off	Steel coupling 3/8" according to ISO 6150 B and US MIL-SPEC 4109. Very robust design with steel valve bodies. The high insertion depth guarantees by an optimized plug guidance. Available on request: in brass material with nickel plating with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Brass/Steel Plug: Nickel Plated Steel Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	1.050 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	14 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1
9087 30 21	1/2"	24 mm	46 mm	12 mm
