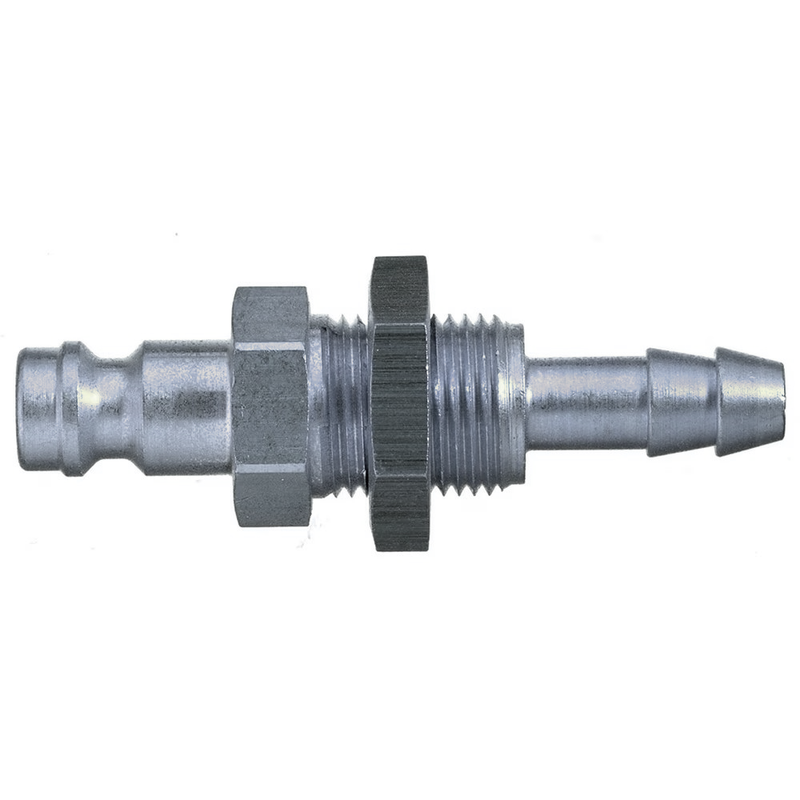

9095 21 04 by Parker | Legris Plug Quick Disconnect | 4 mm Hose Barb Panel Mount x M10x1 Metric Thread | 14 mm Hex | 14 mm Hex (1) | 50 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $60.67

$151.67

$151.67 - $151.67

$151.67

$91.00

$91.00 - $91.00

$91.00

by Parker Hannifin
Series 21 - Brass/Steel:9095 Plug without valve, Panel Mount with Hose Barb

Package Quantity: 5 Units

Specifications for Variant SKU: 9095 21 04 Parker \| 5 \|
Series:	21 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Series 21 - Brass/Steel Series: Single Shut-Off	Mini industrial coupling with the world's most popular profile in this nominal diameter. Above average flow performance for liquid and gaseous media. Coupling system with single-hands operation. Small dimensions and large bandwidth in materials and valve variants. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Nickel-Plated Brass Plug: Nickel-Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	550 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	7 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	Hex 1	B	G	L	L1	L2	Kg
9095 21 04	4 mm	14 mm	14 mm	3 mm	M10x1	50 mm	17 mm	14 mm	.042 Kg
