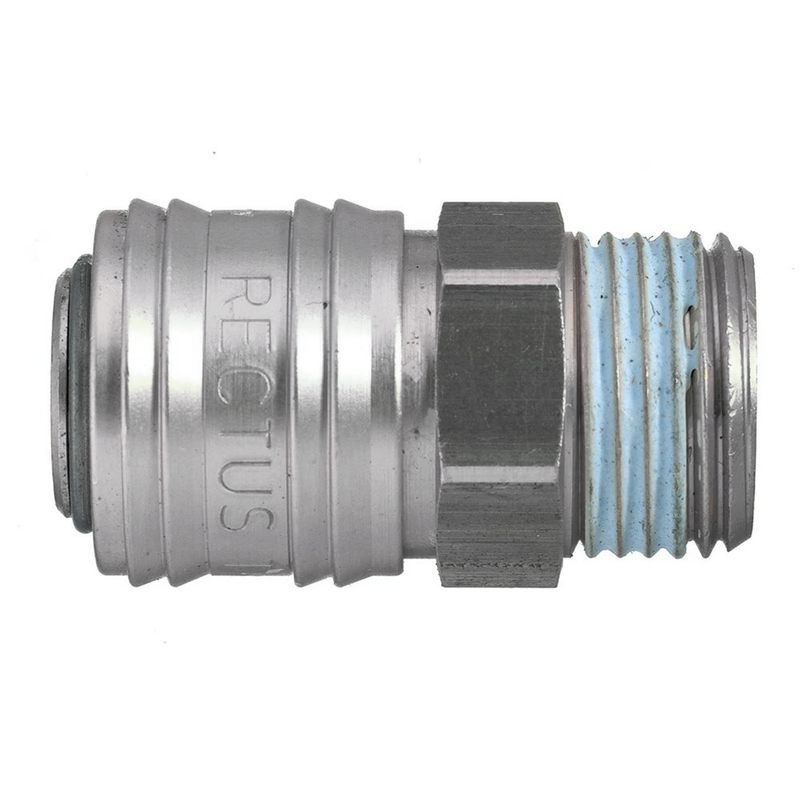

9101 26 10 by Parker | Legris Coupler Quick Disconnect | 1/2" Male BSPP Thread | 22 mm Hex | 44 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $82.58

$206.45

$206.45 - $206.45

$206.45

$123.87

$123.87 - $123.87

$123.87

by Parker Hannifin
Series 26 - Brass/Steel:9101 Coupler with valve, Male Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 9101 26 10 Parker \| 5 \|
Series:	Series 26
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Series 23 - Brass/Steel Series: Single Shut-Off	Universal brass coupling with European standard industrial profile. Coupling system with single-hand operation and standard-valve. Small mass size. The ergonomic sleeve design prevents entering dirt on the valve body. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Brass Plug: Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	1.070 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	18 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1	D
9101 26 10	1/8"	22 mm	43 mm	9 mm	25 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
