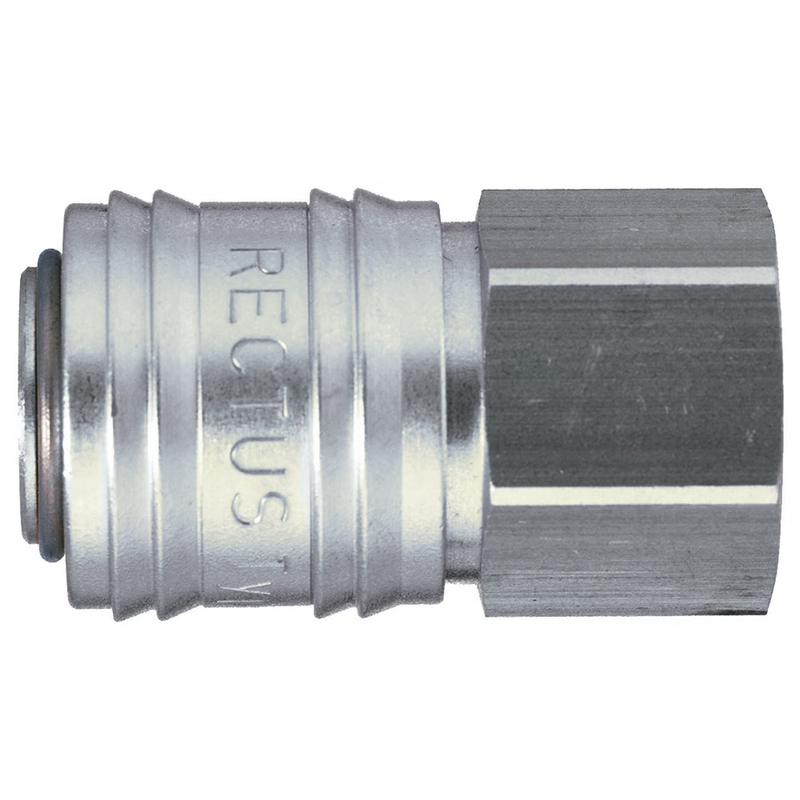

9114 24 17 by Parker | Legris Coupler Quick Disconnect | 3/8" Female BSPP Thread | 22 mm Hex | 43 mm Length | Straight | Nickel-Plated Brass

9114 24 17 by Parker | Legris Coupler Quick Disconnect | 3/8" Female BSPP Thread | 22 mm Hex | 43 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $2.62 Save $2.62
$95.15
$95.15 - $95.15
$95.15
$92.53
$92.53 - $92.53
$92.53

by Parker Hannifin
Series 24 - Brass/Steel:9114 Coupler with valve, Female Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 9114 24 17 Parker | 5 |
Series: Series 24
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Vibration Resistance
Series 24 - Brass/Steel Series: Single Shut-Off 1/4" Industrial brass coupling according to ISO 6150 B and US MIL-SPEC 4109. Coupling system with single-hand operation, which stands out for its solid brass design and corresponding sleeve design. Hardened steel plug counters and effects of external forces.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Brass
  • Plug: Nickel-Plated Steel or Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 820 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 7.4 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1 D
9114 24 13 1/4" 22 mm 43 mm 11 mm 25 mm
9114 24 17 3/8" 22 mm 43 mm 9 mm 25 mm
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
