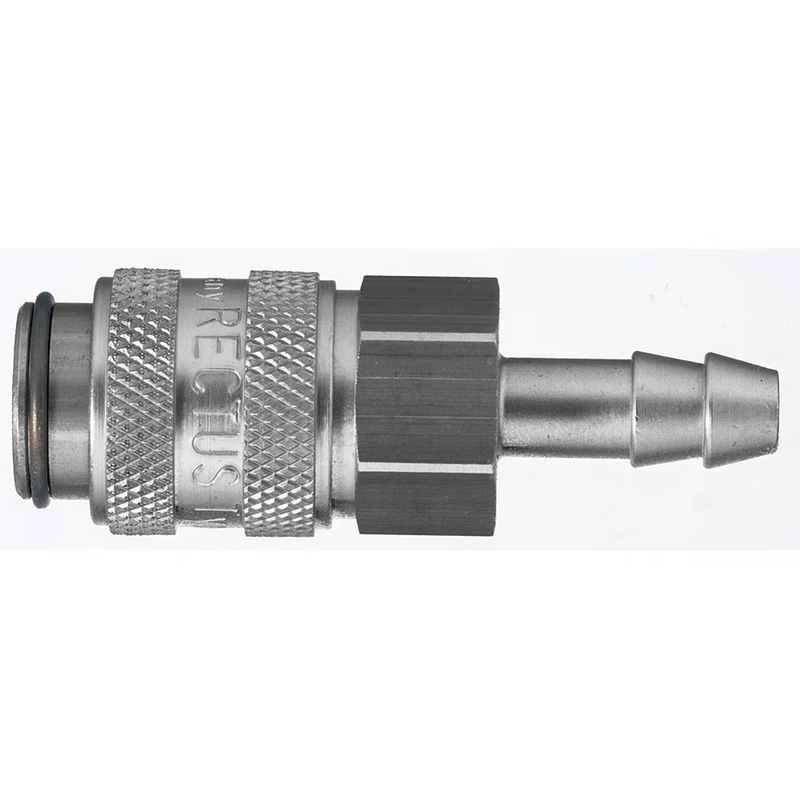

9223 21 04 by Parker | Legris Coupler Quick Disconnect | 4 mm Hose Barb | 14 mm Hex | 46 mm Length | Straight | Nickel-Plated Brass

9223 21 04 by Parker | Legris Coupler Quick Disconnect | 4 mm Hose Barb | 14 mm Hex | 46 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $2.77 Save $2.77
$102.37
$102.37 - $102.37
$102.37
$99.60
$99.60 - $99.60
$99.60

by Parker Hannifin
Series 21 - Brass/Steel:9223 Coupler with valve, Hose Barb

Package Quantity: 5 Units

Specifications for Variant SKU: 9223 21 04 Parker | 5 |
Series: 21 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Series 21 - Brass/Steel Series: Double Shut-Off Mini industrial coupling with the world's most popular profile in this nominal diameter. Above average flow performance for liquid and gaseous media. Coupling system with single-hands operation. Small dimensions and large bandwidth in materials and valve variants.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Nickel-Plated Brass
  • Plug: Nickel-Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 310 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 2.7 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1 D Kg
9223 21 04 4 mm 14 mm 46 mm 17 mm 16 mm .057 Kg
9223 21 06 6 mm 14 mm 46 mm 17 mm 16 mm .060 Kg
9223 21 08 8 mm 14 mm 46 mm 17 mm 16 mm .062 Kg
