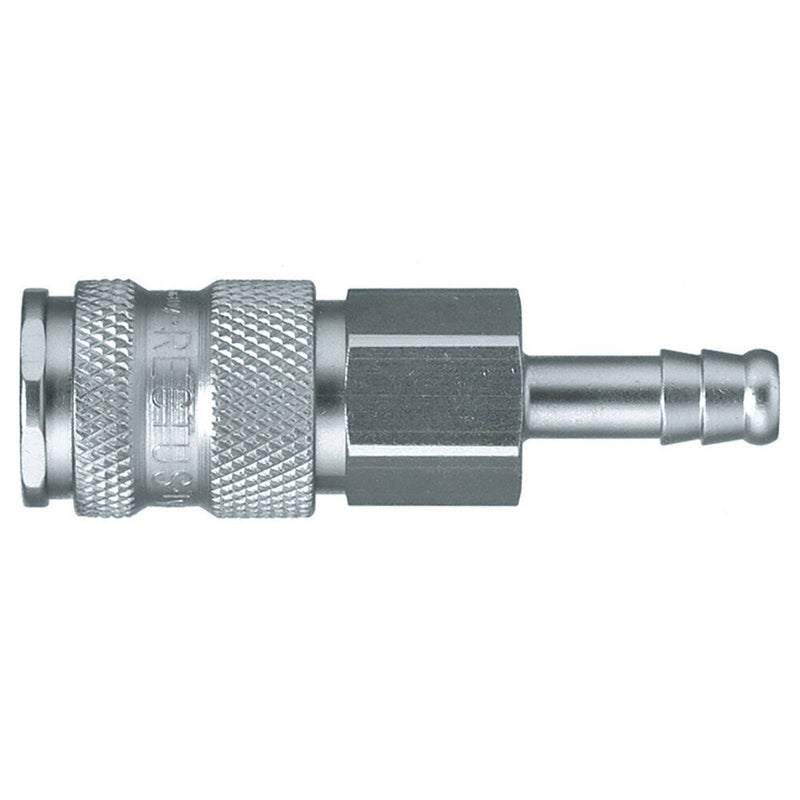

9223 25 06 by Parker | Legris Coupler Quick Disconnect | 6 mm Hose Barb | 19 mm Hex | 74 mm Length | Straight | Nickel-Plated Brass/Steel

9223 25 06 by Parker | Legris Coupler Quick Disconnect | 6 mm Hose Barb | 19 mm Hex | 74 mm Length | Straight | Nickel-Plated Brass/Steel

Save $22.21 Save $22.21
$55.52
$55.52 - $55.52
$55.52
$33.31
$33.31 - $33.31
$33.31

by Parker Hannifin
Series 25 - Brass/Steel:9223 Coupler with valve, Hose Barb
Specifications for Variant SKU: 9223 25 06 Parker
Series: Series 25
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Nickel-Plated Steel
Seal Material(s): Buna-N/Nitrile Rubber
Series 25 - Brass/Steel Series: Double Shut-Off Universal industrial coupling with European standard profile. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. The series stands out for its robust design and long service life even with the harshest use.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Nickel-Plated Brass/Steel
  • Plug: Zinc Plated Steel
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 710 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 7.1 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1 D
9223 25 06 6 mm 19 mm 74 mm 25 mm 23 mm
9223 25 08 8 mm 19 mm 74 mm 25 mm 23 mm
9223 25 10 10 mm 19 mm 74 mm 25 mm 23 mm
9223 25 13 13 mm 19 mm 74 mm 25 mm 23 mm
