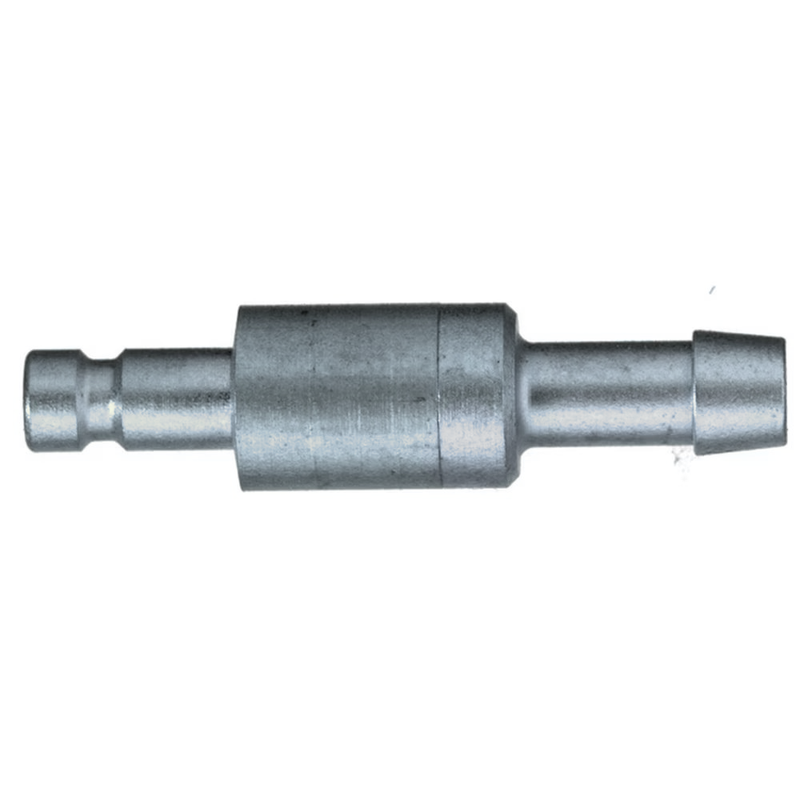

9285 20 05 by Parker | Legris Plug Quick Disconnect | 5 mm Hose Barb | 8 mm Hex | 36 mm Length | Straight | Nickel=Plated Brass | Pack of 5

Save $45.82

$114.55

$114.55 - $114.55

$114.55

$68.73

$68.73 - $68.73

$68.73

by Parker Hannifin
Series 20 - Brass/Steel:9285 Plug with valve, Hose Barb

Package Quantity: 5 Units

Specifications for Variant SKU: 9285 20 05 Parker \| 5 \|
Series:	20 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Series 20 - Brass/Steel Series: Double Shut-Off	Mini Industrial coupling with internationally used profile. Frequent use in medical technology and chemistry/pharmacy. Coupling system with single-hand operation. Wide range of applications with different media. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Brass Plug: Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	130 Nl/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	1.2 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1	Kg
9285 20 04	4 mm	8 mm	36 mm	13 mm	.006 Kg
9285 20 05	5 mm	8 mm	36 mm	13 mm	.007 Kg
