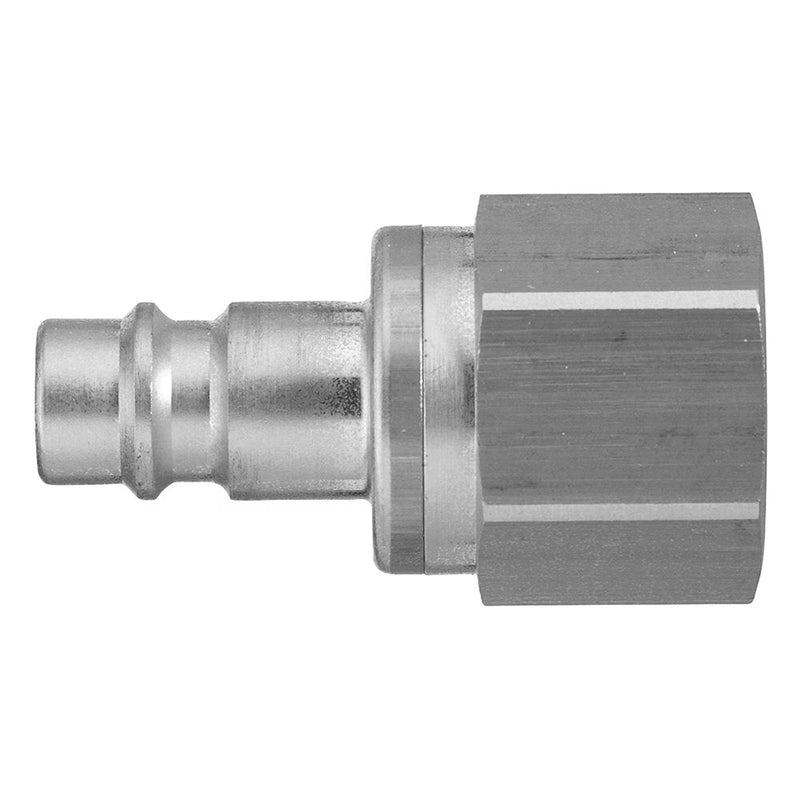

9286 25 13 by Parker | Legris Plug Quick Disconnect | 1/4" Female BSPP Thread | 22 mm Hex | 43 mm Length | Nickel-Plated Brass

Save $0.83 Save $0.83
Original price $30.00
Original price $30.00 - Original price $30.00
Original price $30.00
Current price $29.17
$29.17 - $29.17
Current price $29.17

by Parker Hannifin
Series 25 - Brass/Steel:9286 Plug with valve, Female Thread

Specifications for Variant SKU: 9286 25 13 Parker
Series: Series 25
Shape (Orientation): No Orientation
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Series 25 - Brass/Steel Series: Double Shut-Off Universal industrial coupling with European standard profile. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. The series stands out for its robust design and long service life even with the harshest use.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Nickel-Plated Brass/Steel
  • Plug: Zinc Plated Steel
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 710 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 7.1 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1
9286 25 13 1/4" 22 mm 43 mm 10 mm
9286 25 17 3/8" 22 mm 43 mm 9 mm
