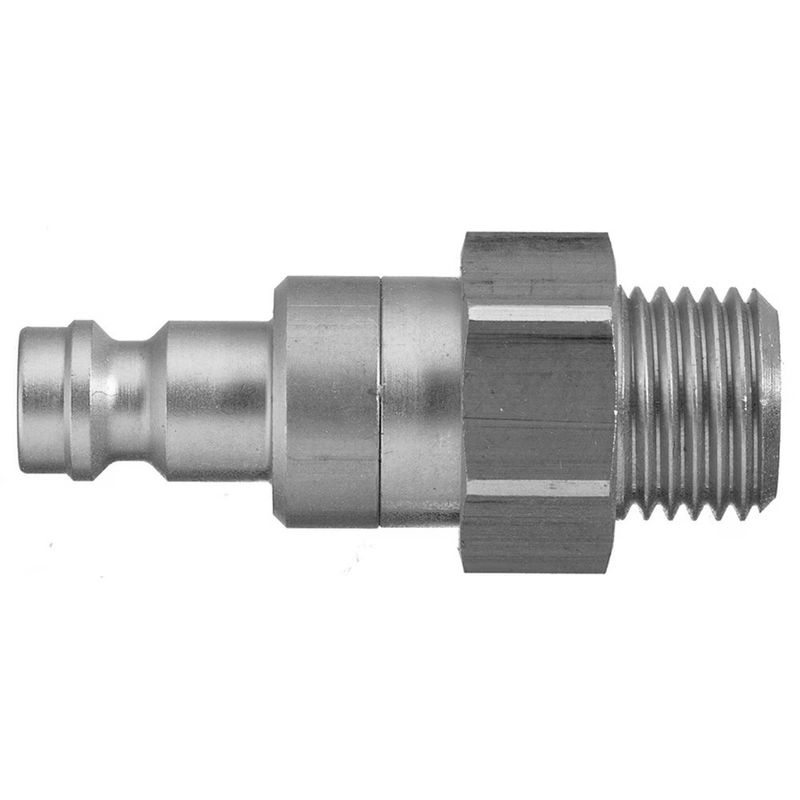

9287 21 13 by Parker | Legris Plug Quick Disconnect | 1/4" Male BSPP Thread | 17 mm Hex | 42 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $72.13

$180.33

$180.33 - $180.33

$180.33

$108.20

$108.20 - $108.20

$108.20

by Parker Hannifin
Series 21 - Brass/Steel:9287 Plug with valve, Male Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 9287 21 13 Parker \| 5 \|
Series:	21 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Series 21 - Brass/Steel Series: Double Shut-Off	Mini industrial coupling with the world's most popular profile in this nominal diameter. Above average flow performance for liquid and gaseous media. Coupling system with single-hands operation. Small dimensions and large bandwidth in materials and valve variants. Available on request: with additional end connections other seals for different temperature ranges and fluids
Working Pressure:	up to 35 bar
Material:	Coupling: Nickel-Plated Brass Plug: Nickel-Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	310 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:	2.7 l/min. (Pressure dop 0.5 bar)


Part Number	A	Hex	L	L1	Kg
9287 21 13	1/4"	17 mm	42 mm	9 mm	.068 Kg
