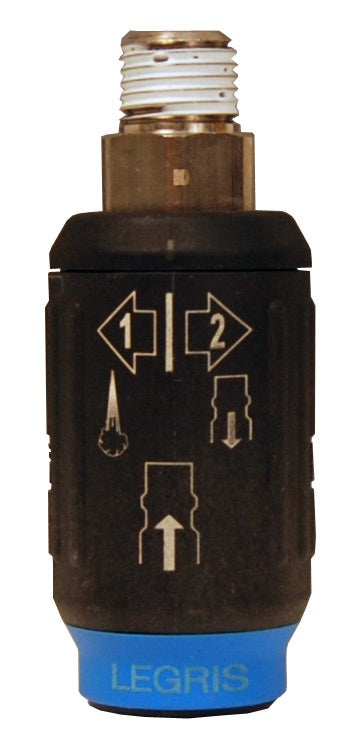

9405U0618 Legris by Dixon Valve | Pneumatic Industrial Interchange Safety Coupler/Socket | 3/8" Male NPT x 1/4" Body Size | Composite

9405U0618 Legris by Dixon Valve | Pneumatic Industrial Interchange Safety Coupler/Socket | 3/8" Male NPT x 1/4" Body Size | Composite

Save $29.63 Save $29.63
$74.08
$74.08 - $74.08
$74.08
$44.45
$44.45 - $44.45
$44.45

Automatic Industrial Interchange Safety Couplers On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Specifications for Variant SKU: 9405U0618 Dixon
Brand: Legris
Shape (Orientation): Straight
Ends Configuration: 1/4in Female Legris QD Interchange, 3/8in Male NPT
Material(s): Plastic
Features:
  • For compressed air only.
  • 1/4" body size ensures excellent flow and total security due to disconnection in two steps.
Construction:
  • Composite, non-marring body.
Specifications:
  • Compatible with industrial interchange plugs.
  • Conforms to MIL-C-4109F, ISO 6150-B.
  • Temperature range: -4 °F to 140 °F (-40 °C to 121 °C).
  • Working pressure: 230 PSI.
Steel
Part Number		 Body Size Male NPT Size
9405U0614 1/4" 1/4" Male NPT
9405U0618 1/4" 3/8" Male NPT

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
