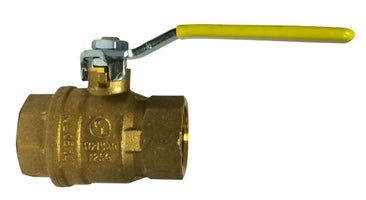

943204 (943-204) Midland Full Port Italian Ball Valve - 1" Female NPT x 1" Female NPT - Brass

943204 by Midland | Full Port Italian Ball Valve | 1" Female NPT x 1" Female NPT | Brass

Save $1.84 Save $1.84
$25.88
$25.88 - $25.88
$25.88
$24.04
$24.04 - $24.04
$24.04

Midland Industries
Full Port Italian Ball Valve - Female NPT x Female NPT - Brass

600 PSI (42 bars) WOG

ISO 9002 Manufacturer

Inventory @ Manufacturers Warehouse: 1580 Units
Specifications for Variant SKU: 943204 Midland
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): NBR
Applicable Specs & Approvals: UL842, UL258, UL125, FM, AGA 3.88, IGC 157
Features:
  • Suitable for full range of liquids and gases
  • Minimal pressure drop due to large full size ports
  • Bottom loaded, pressure retaining stem
  • Pressure rated at 600 PSI (42 bars) WOG (non-shock) and 150 WSP (10.34 bars) saturated steam.
  • Fast 1/4 turn open or close operation
  • Low operating torque
  • Flow can go both directions
  • Generic Handles
  • Adjustable stem packing gland
  • Maximum operating temerature: 248°F (120°C) at 600 PSI
  • Minimum operating temperature: -20°F (-40°C)
  • Each valve individually tested
  • Bottom entry, blow-out proof stem
  • Reversible Handles
Construction:
  • Solid Chrome Plated Brass Ball
  • Virgin TFE stem packing seal, thrust washer and seats.
  • Yellow vinyl insulator on heavy duty plated carbon steel handles.
  • Forged Brass - for more strength
  • Hard chromium plated solid ball
  • Deeper threads - for better connections
  • Made In Italy
Specifications:
  • UL842, UL258, UL125, FM
  • CSA AGA 3.88 5 PSIG
  • IAMPO IGC 157 - 2004b
  • Threaded ends to ANSI B1.20.1
Part Number Components Materials N
1 Body Forged Brass 1
2 End Connection Forged Brass 1
3 Ball CP Brass 1
4 Ball Stems PTFE 2
5 Stem Antif. Seat PTFE 1
6 Stem Seat PTFE 1
7 Brass Ring Brass 1
8 Stem Brass 1
9 O-Ring NBR 80 1
10 Handle Steel 1
11 Nut Steel 1
12 Nut Brass 1
Part Number Size
NPT		 DN A B C D CH Weight
943200
(943-200)		 1/4" 0.39" 1.96" 1.53" 3.31" 0.43" 0.75" 0.36
943201
(943-201)		 3/8" 0.39" 1.96" 1.53" 3.31" 0.43" 0.86" 0.40
943202
(943-202)		 1/2" 0.57" 2.09" 1.57" 3.25" 0.46" 0.98" 0.44
943203
(943-203)		 3/4" 0.75" 2.28" 1.77" 3.80" 0.49" 1.22" 0.57
943204
(943-204)		 1" 0.94" 2.80" 2.03" 3.80" 0.59" 1.50" 0.89
943205
(943-205)		 1-1/4" 1.24" 3.50" 2.32" 4.72" 0.72" 1.85" 1.64
943206
(943-206)		 1-1/2" 1.49" 3.90" 3.02" 6.38" 0.85" 2.13" 2.78
943207
(943-207)		 2" 1.96" 4.07" 3.27" 6.38" 0.65" 2.64" 3.21
942208
(942-208)		 2-1/2" 2.48" 5.80" 4.98" 7.54" 1.06" 3.31" 6.97
942209
(942-209)		 3" 2.99" 6.85" 5.63" 8.86" 1.14" 3.89" 10.34
942210
(942-210)		 4" 3.54" 7.67" 6.04" 8.86" 1.22" 4.80" 18.77
Handle Options
Part Number Handle Type Valve Size
43200T
(43-200T)		 Tee Handle 1/4" - 3/4" Size
43204T
(43-204T)		 Tee Handle 1" Size
43200L
(43-200L)		 Locking Handle 1/4" - 3/4" Size
43204L
(43-204L)		 Locking Handle 1" Size
43206L
(43-206L)		 Locking Handle 1-1/2" & 2" Size
43207L
(43-207L)		 Locking Handle 2" Size
