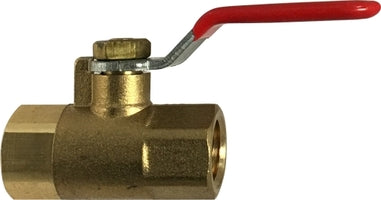

944140 (944-140) Midland Forged Mini Ball Valve - 1/2" Female Pipe x 1/2" Female Pipe - Brass

944140 by Midland | Forged Mini Ball Valve | 1/2" Female Pipe x 1/2" Female Pipe | Brass

Save $0.89 Save $0.89
$12.39
$12.39 - $12.39
$12.39
$11.50
$11.50 - $11.50
$11.50

Midland Industries
Forged Mini Ball Valve - Female Pipe x Female Pipe - Brass

200 WOG working pressure

Inventory @ Manufacturers Warehouse: 190 Units
Specifications for Variant SKU: 944140 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): NBR
Features:
  • Temp rating: -20°F - 250°F
  • Generic Handles
  • Not lead free
Construction:
  • 180° operational handle
  • Blow out proof stem
  • Stem with double "O" Rings
Number Part Name Material QTY
1 Nut Steel 1
2 Handle Steel 1
3 Cover PVC 1
4 O-Ring NBR 2
5 Stem Brass 1
6 Body Brass 1
7 Seat Teflon 2
8 Ball Disc Brass 1
9 End Plug Brass 1
Part Number Size A B C D
944113
(944-113)		 1/8" 1.53" 2.80" 0.73" 1.42"
944116
(944-116)		 1/4" 1.53" 2.80" 0.73" 1.42"
944117
(944-117)		 3/8" 1.73" 2.90" 0.87" 1.50"
944140
(944-140)		 1/2" 2.20" 3.08" 0.98" 1.45"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
