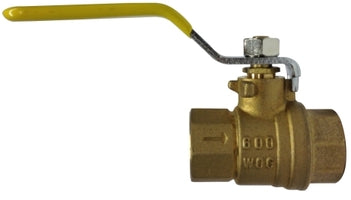

948144 (948-144) by Midland | Full Port Safety Exhaust Ball Valve | Vented | 3/4" Female Thread x 3/4" Female Thread | Straight | Brass

Save $1.73

$24.24

$24.24 - $24.24

$24.24

$22.51

$22.51 - $22.51

$22.51

Midland Industries
Full Port Safety Exhaust Ball Valve - Vented - Female Thread x Female Thread - Brass

400 PSI WOG / 150 SWP

Used to exhaust and downstream air in the closed position w/ locking lever handle.

Quantity

Specifications for Variant SKU: 948144 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s):	Brass

Features:
Threaded Vented Not lead free 400 PSI WOG / 150 SWP
Construction:
Two Piece Body Full Port Blow-out Proof Stem - PTFE Seats Made in China

Item	Part	Material
1	Body	Brass
2	End Cap	Brass
3	Ball Seat	PTFE
4	Ball	Brass
5	Stem	Brass
6	Stem Packing	PTFE
7	Packing Nut	Brass
8	Lever Handle	Nickel plating steel
9	Stem Nut	Nickel plating steel


Part Number	Size	A	B	D	E
948141 (948-141)	1/4"	1.756"	1.88"	0.394"	0.457"
948142 (948-142)	3/8"	1.756"	1.88"	0.394"	0.457"
948143 (948-143)	1/2"	2.047"	2.13"	0.583"	0.520"
948144 (948-144)	3/4"	2.362"	2.28"	0.748"	0.563"
