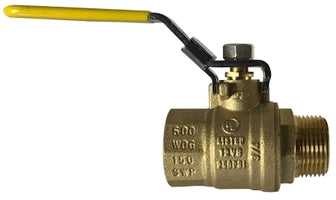

948171L (948-171L) Midland Locking Handle Ball Valve - 3/8" Female NPT x 3/8" Male NPT - Brass

948171L by Midland | Locking Handle Ball Valve | 3/8" Female NPT x 3/8" Male NPT | Brass

Save $0.88 Save $0.88
$12.43
$12.43 - $12.43
$12.43
$11.55
$11.55 - $11.55
$11.55

Midland Industries
Locking Handle Ball Valve - Female NPT x Male NPT - Brass

600 PSI (WOG)

Inventory @ Manufacturers Warehouse: 69 Units
Specifications for Variant SKU: 948171L Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPT, 3/8in Male NPT
Material(s): Brass
Applicable Specs & Approvals: UL842, UL258
Features:
  • Blow out proof stem design
  • 600 PSI (WOG) 150 PSI (WSP) Service
  • Temperature range: -20° F to 300° F
  • Not lead free
Construction:
  • Forged brass body
  • Packing nut, O-Ring and packing on the stem seal
  • Chrome Plated Brass ball
  • Handle with vinyl grip
  • Made in China
Specifications:
  • Threads conform ANSI B1.20.1
  • UL842, UL258
Item Part Materials
1 Body Brass
2 End Cap Brass
3 Ball Seat PTFE
4 Ball C/P Brass
5 Stem Brass
6 Stem Packing PTFE
7 Packing Nut Brass
8 Lever Handle Nickel plating steel
9 Stem Nut Brass plating steel
Part Number Size
NPT		 A B C D E Weight
948170L
(948-170L)		 1/4" 2.016" 1.732" 3.543" 0.315" 0.457" 0.32 lbs
948171L
(948-171L)		 3/8" 2.094" 1.732" 3.543" 0.394" 0.457" 0.37 lbs
948172L
(948-172L)		 1/2" 2.343" 1.941" 3.543" 0.583" 0.520" 0.50 lbs
948173L
(948-173L)		 3/4" 2.618" 2.106" 3.78" 0.748" 0.563" 0.77 lbs
948174L
(948-174L)		 1" 3.000" 2.579" 4.528" 0.945" 0.630" 1.21 lbs
948175L
(948-175L)		 1-1/4" 3.563" 2.961" 4.528" 1.260" 0.709" 1.74 lbs
948176L
(948-176L)		 1-1/2" 3.965" 3.366" 5.36" 1.575" 0.717" 2.58 lbs
948177L
(948-177L)		 2" 4.496" 3.701" 5.36" 1.969" 0.748" 3.73 lbs
