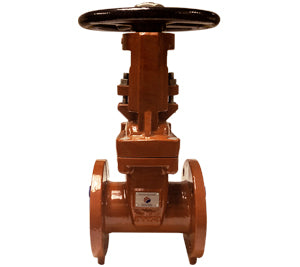

9610NYCF25 Midland No Tap NY and Chicago Gate Valve - 2-1/2" Flanged Ends - Ductile Iron

9610NYCF25 by Midland | No Tap NY and Chicago Gate Valve | 2-1/2" Flanged Ends | Ductile Iron

Save $76.10 Save $76.10
$489.21
$489.21 - $489.21
$489.21
$413.11
$413.11 - $413.11
$413.11

Midland Industries
Ductile Iron Gate Valve - No Tap NY and Chicago Gate Valve - Flange x Flange

300 PSI

Complies with New York and Chicago requirements.

Inventory @ Manufacturers Warehouse: 25 Units
Specifications for Variant SKU: 9610NYCF25 Midland
Shape (Orientation): Straight
Material(s): Ductile Iron
Seal Material(s): Rubber
Applicable Specs & Approvals: NSF 61, NSF 372, MH61025, FM
Part Number Part Material ASTM Spec.
1 Body Ductile Iron A536 65-45-12
2 Wedge Ductile Iron, EPDM Encapsulated A536 65-45-12
3 Wedge Nut Stainless Steel A276 Type 304SS
4 Pin Stainless Steel A276 Type 420SS
5 O-Ring Rubber D2000 NBR
6 Gasket Rubber D2000 NBR
7 Stem Stainless Steel A276 Type 304SS
8 Bonnet Ductile Iron A536 65-45-12
9 Packing Graphite -
10 Gland Ductile Iron A536 65-45-12
11 Yoke Nut Bronze B148 C95200
12 Washer Brass -
13 Handwheel Ductile Iron A536 65-45-12
14 Handwheel Nut Ductile Iron A536 65-45-12
15 Bolts Stainless Steel A276 Type 304SS
16 Nuts Stainless Steel A276 Type 316SS
17 Washers Stainless Steel A276 Type 304SS
Part Number Size L H
Open		 H
Close		 D Weight
9610NYCF25 2-1/2" 7-1/2" 16-5/8" 13-3/4" 7-1/4" 46.2 lbs
9610NYCF3 3" 8" 18-7/8" 15-3/4" 10" 62.7 lbs
9610NYCF4 4" 9" 21-5/8" 17-3/4" 10" 74.8 lbs
9610NYCF6 6" 10-1/2" 29-1/8" 23-1/4" 12" 103.9 lbs
9610NYCF8 8" 11-1/2" 36-5/8" 28-3/4" 14" 190.9 lbs
9610NYCF10 10" 13" 44-1/2" 34-3/4" 17-1/2" 291.8 lbs
9610NYCF12 12" 14" 52" 40-1/6" 17-1/2" 409.8 lbs
