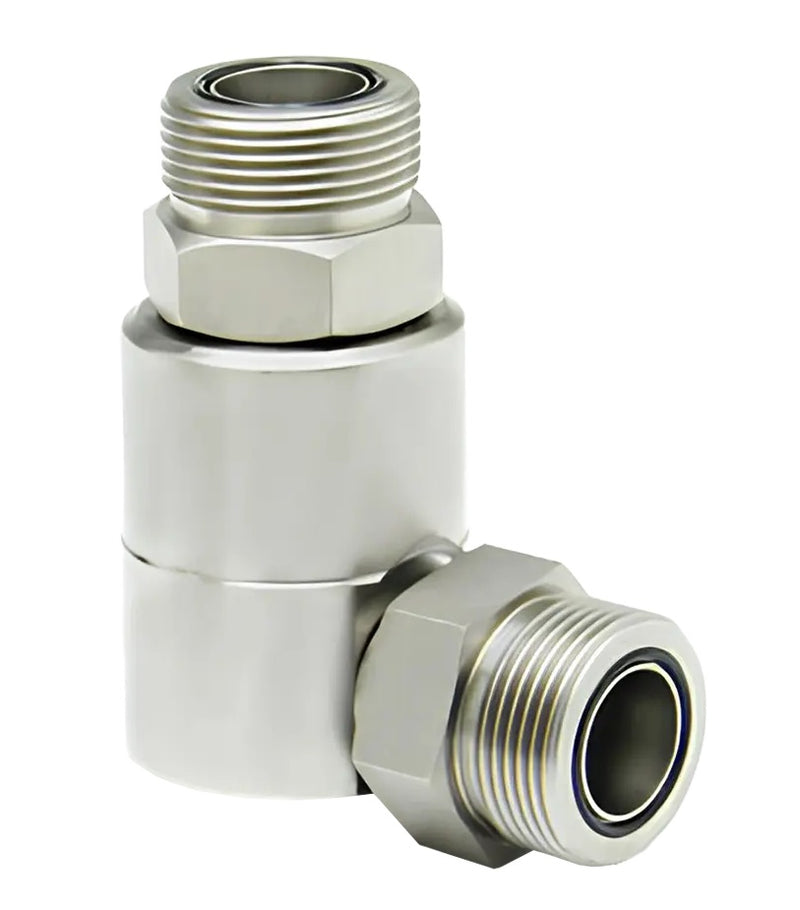

9SS8MFS10XMFS10-Z-AL by Super Swivel | 7621-Z-AL | 1-14 Male Face Seal MFS x 1-14 Male Face Seal MFS | 0.297" Through Hole | 90° Elbow | Zinc | AFLAS Seal
9SS8MFS10XMFS10-Z-AL by Super Swivel | 7621-Z-AL | 1-14 Male Face Seal MFS x 1-14 Male Face Seal MFS | 0.297" Through Hole | 90° Elbow | Zinc | AFLAS Seal
9SS8MFS10XMFS10-Z-AL by Super Swivel | 7621-Z-AL | 1-14 Male Face Seal MFS x 1-14 Male Face Seal MFS | 0.297" Through Hole | 90° Elbow | Zinc | AFLAS Seal

9SS8MFS10XMFS10-Z-AL by Super Swivel | 7621-Z-AL | 1-14 Male Face Seal MFS x 1-14 Male Face Seal MFS | 0.297" Through Hole | 90° Elbow | Zinc | AFLAS Seal

Save $6.69 Save $6.69
$60.20
$60.20 - $60.20
$60.20
$53.51
$53.51 - $53.51
$53.51

Super Swivels
90° Swivels - Male Face Seal MFS X Male Face Seal MFS
Specifications for Variant SKU: 9SS8MFS10XMFS10-Z-AL Super Swivels #7621
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Male O-Ring Face Seal, 5/8in Male O-Ring Face Seal, Some Ends Match
Material(s): Zink-Plated Carbon Steel
Seal Material(s): AFLAS
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks - No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)

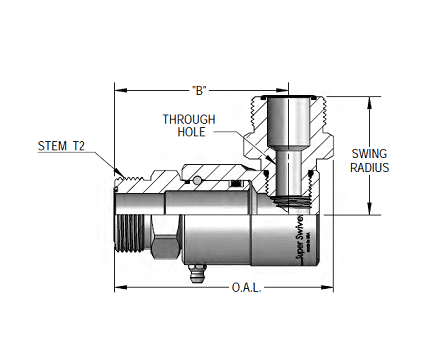

Part Number Material Seal Overall
Length		 Dim.
B		 Port T1 Stem T2 Wrench/Hex SWG.
Radius		 Max
PSIG		 Through
Hole
9SS4MFS6XMFS6-Z-V Zinc Viton 2.688" 2.176" 11/16-16 UN 11/16-16 UN 0.750" 1.450" 5000 PSIG 0.250"
9SS4MFS6XMFS6-Z-AL Zinc AFLAS 2.688" 2.176" 11/16-16 UN 11/16-16 UN 0.750" 1.450" 5000 PSIG 0.250"
9SS4MFS6XMFS6-Z-ETP Zinc Extreme Viton® 2.688" 2.176" 11/16-16 UN 11/16-16 UN 0.750" 1.450" 5000 PSIG 0.250"
9SS4MFS6XMFS6-NI-V Electroless Nickel Viton 2.688" 2.176" 11/16-16 UN 11/16-16 UN 0.750" 1.450" 5000 PSIG 0.250"
9SS4MFS6XMFS6-NI-AL Electroless Nickel AFLAS 2.688" 2.176" 11/16-16 UN 11/16-16 UN 0.750" 1.450" 5000 PSIG 0.250"
9SS4MFS6XMFS6-NI-ETP Electroless Nickel Extreme Viton® 2.688" 2.176" 11/16-16 UN 11/16-16 UN 0.750" 1.450" 5000 PSIG 0.250"

9SS8MFS8XMFS8-Z-V Zinc Viton 2.909" 2.362" 13/16-16 UN 13/16-16 UN 1.000" 1.706" 5000 PSIG 0.264"
9SS8MFS8XMFS8-Z-AL Zinc AFLAS 2.909" 2.362" 13/16-16 UN 13/16-16 UN 1.000" 1.706" 5000 PSIG 0.264"
9SS8MFS8XMFS8-Z-ETP Zinc Extreme Viton® 2.909" 2.362" 13/16-16 UN 13/16-16 UN 1.000" 1.706" 5000 PSIG 0.264"
9SS8MFS8XMFS8-NI-V Electroless Nickel Viton 2.909" 2.362" 13/16-16 UN 13/16-16 UN 1.000" 1.706" 5000 PSIG 0.264"
9SS8MFS8XMFS8-NI-AL Electroless Nickel AFLAS 2.909" 2.362" 13/16-16 UN 13/16-16 UN 1.000" 1.706" 5000 PSIG 0.264"
9SS8MFS8XMFS8-NI-ETP Electroless Nickel Extreme Viton® 2.909" 2.362" 13/16-16 UN 13/16-16 UN 1.000" 1.706" 5000 PSIG 0.264"

9SS8MFS10XMFS10-Z-V Zinc Viton 3.105" 2.558" 1-14 UN 1-14 UN 1.125" 1.826" 5000 PSIG 0.297"
9SS8MFS10XMFS10-Z-AL Zinc AFLAS 3.105" 2.558" 1-14 UN 1-14 UN 1.125" 1.826" 5000 PSIG 0.297"
9SS8MFS10XMFS10-Z-ETP Zinc Extreme Viton® 3.105" 2.558" 1-14 UN 1-14 UN 1.125" 1.826" 5000 PSIG 0.297"
9SS8MFS10XMFS10-NI-V Electroless Nickel Viton 3.105" 2.558" 1-14 UN 1-14 UN 1.125" 1.826" 5000 PSIG 0.297"
9SS8MFS10XMFS10-NI-AL Electroless Nickel AFLAS 3.105" 2.558" 1-14 UN 1-14 UN 1.125" 1.826" 5000 PSIG 0.297"
9SS8MFS10XMFS10-NI-ETP Electroless Nickel Extreme Viton® 3.105" 2.558" 1-14 UN 1-14 UN 1.125" 1.826" 5000 PSIG 0.297"

9SS12MFS12XMFS12-Z-V Zinc Viton 3.385" 2.745" 1-3/16-12 UN 1-3/16-12 UN 1.250" 2.135" 4500 PSIG 0.378"
9SS12MFS12XMFS12-Z-AL Zinc AFLAS 3.385" 2.745" 1-3/16-12 UN 1-3/16-12 UN 1.250" 2.135" 4500 PSIG 0.378"
9SS12MFS12XMFS12-Z-ETP Zinc Extreme Viton® 3.385" 2.745" 1-3/16-12 UN 1-3/16-12 UN 1.250" 2.135" 4500 PSIG 0.378"
9SS12MFS12XMFS12-NI-V Electroless Nickel Viton 3.385" 2.745" 1-3/16-12 UN 1-3/16-12 UN 1.250" 2.135" 4500 PSIG 0.378"
9SS12MFS12XMFS12-NI-AL Electroless Nickel AFLAS 3.385" 2.745" 1-3/16-12 UN 1-3/16-12 UN 1.250" 2.135" 4500 PSIG 0.378"
9SS12MFS12XMFS12-NI-ETP Electroless Nickel Extreme Viton® 3.385" 2.745" 1-3/16-12 UN 1-3/16-12 UN 1.250" 2.135" 4500 PSIG 0.378"

9SS16MFS16XMFS16-Z-V Zinc Viton 4.190" 3.316" 1-7/16-12 UN 1-7/16-12 UN 1.500" 2.255" 4000 PSIG 0.484"
9SS16MFS16XMFS16-Z-AL Zinc AFLAS 4.190" 3.316" 1-7/16-12 UN 1-7/16-12 UN 1.500" 2.255" 4000 PSIG 0.484"
9SS16MFS16XMFS16-Z-ETP Zinc Extreme Viton® 4.190" 3.316" 1-7/16-12 UN 1-7/16-12 UN 1.500" 2.255" 4000 PSIG 0.484"
9SS16MFS16XMFS16-NI-V Electroless Nickel Viton 4.190" 3.316" 1-7/16-12 UN 1-7/16-12 UN 1.500" 2.255" 4000 PSIG 0.484"
9SS16MFS16XMFS16-NI-AL Electroless Nickel AFLAS 4.190" 3.316" 1-7/16-12 UN 1-7/16-12 UN 1.500" 2.255" 4000 PSIG 0.484"
9SS16MFS16XMFS16-NI-ETP Electroless Nickel Extreme Viton® 4.190" 3.316" 1-7/16-12 UN 1-7/16-12 UN 1.500" 2.255" 4000 PSIG 0.484"

9SS20MFS20XMFS20-Z-V Zinc Viton 4.670" 3.649" 1-11/16-16 UN 1-11/16-16 UN 1.750" 2.658" 4000 PSIG 0.718"
9SS20MFS20XMFS20-Z-AL Zinc AFLAS 4.670" 3.649" 1-11/16-16 UN 1-11/16-16 UN 1.750" 2.658" 4000 PSIG 0.718"
9SS20MFS20XMFS20-Z-ETP Zinc Extreme Viton® 4.670" 3.649" 1-11/16-16 UN 1-11/16-16 UN 1.750" 2.658" 4000 PSIG 0.718"
9SS20MFS20XMFS20-NI-V Electroless Nickel Viton 4.670" 3.649" 1-11/16-16 UN 1-11/16-16 UN 1.750" 2.658" 4000 PSIG 0.718"
9SS20MFS20XMFS20-NI-AL Electroless Nickel AFLAS 4.670" 3.649" 1-11/16-16 UN 1-11/16-16 UN 1.750" 2.658" 4000 PSIG 0.718"
9SS20MFS20XMFS20-NI-ETP Electroless Nickel Extreme Viton® 4.670" 3.649" 1-11/16-16 UN 1-11/16-16 UN 1.750" 2.658" 4000 PSIG 0.718"

9SS24MFS24XMFS24-NI-V Electroless Nickel Viton 5.600" 4.370" 2-12 UN 2-12 UN 2.125" 2.845" 4000 PSIG 0.811"
9SS24MFS24XMFS24-NI-AL Electroless Nickel AFLAS 5.600" 4.370" 2-12 UN 2-12 UN 2.125" 2.845" 4000 PSIG 0.811"
9SS24MFS24XMFS24-NI-ETP Electroless Nickel Extreme Viton® 5.600" 4.370" 2-12 UN 2-12 UN 2.125" 2.845" 4000 PSIG 0.811"
Super Swivels

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
