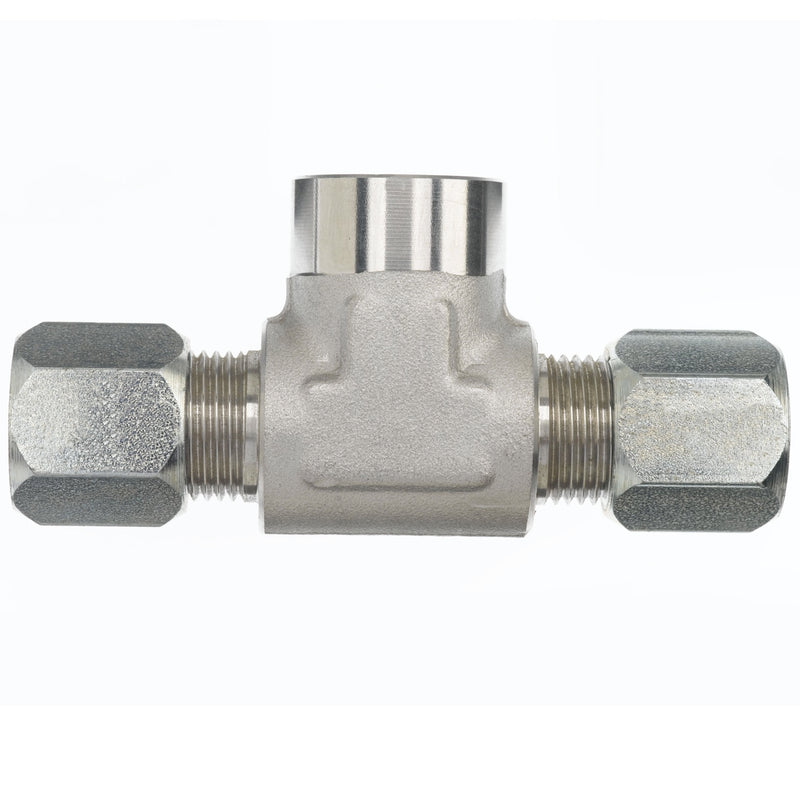

C2602-08-08-08-SS by Brennan Inc. | -08 Bite Type x -08 Bite Type x -08 Female Pipe | Tee | Stainless Steel

C2602-08-08-08-SS by Brennan Inc. | -08 Bite Type x -08 Bite Type x -08 Female Pipe | Tee | Stainless Steel

$144.42 - $144.42
$144.42
$183.25
$183.25 - $183.25
$183.25

Brennan Inc.
Flareless Bite Type: C2602 Bite Type x Bite Type x Female Pipe Tee
Specifications for Variant SKU: C2602-08-08-08-SS Brennan
Shape (Orientation): Tee
Ends Configuration: 1/2in Tube Compression , 1/2in Tube Compression , 1/2in Female NPT, Some Ends Match
Material(s): Stainless Steel
Part Number Material Tube O.D. B1 Thread B2 Thread A3 NPTF B1 Drill B2 Drill M1 Length M2 Length N Length K1 Depth K2 Depth Y Flats
C2602-04-04-02-FG Forged Steel 1/4" 7/16-20" 7/16-20" 1/8-27" 0.203" 0.203" 0.890" 0.890" 0.660" 0.234" 0.234" 0.562"
C2602-04-04-04-FG Forged Steel 1/4" 7/16-20" 7/16-20" 1/4-18" 0.203" 0.203" 1.030" 1.030" 0.880" 0.234" 0.234" 0.750"
C2602-06-06-04-FG Forged Steel 3/8" 9/16-18" 9/16-18" 1/4-18" 0.281" 0.281" 1.050" 1.050" 0.880" 0.250" 0.250" 0.750"
C2602-06-06-06-FG Forged Steel 3/8" 9/16-18" 9/16-18" 3/8-18" 0.281" 0.281" 1.120" 1.120" 1.020" 0.250" 0.250" 0.875"
C2602-08-08-06-FG Forged Steel 1/2" 3/4-16" 3/4-16" 3/8-18" 0.422" 0.422" 1.230" 1.230" 1.020" 0.305" 0.305" 0.875"
C2602-08-08-08-FG Forged Steel 1/2" 3/4-16" 3/4-16" 1/2-14" 0.422" 0.422" 1.350" 1.350" 1.230" 0.305" 0.305" 1.062"
C2602-10-10-08-FG Forged Steel 5/8" 7/8-14" 7/8-14" 1/2-14" 0.500" 0.500" 1.420" 1.420" 1.230" 0.350" 0.350" 1.062"
C2602-12-12-12-FG Forged Steel 3/4" 1-1/16-12" 1-1/16-12" 3/4-14" 0.656" 0.656" 1.580" 1.580" 1.360" 0.350" 0.350" 1.312"
C2602-16-16-16-FG Forged Steel 1" 1-5/16-12" 1-5/16-12" 1-11-1/2" 0.875" 0.875" 1.730" 1.730" 1.620" 0.415" 0.415" 1.625"
C2602-20-20-20-FG Forged Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1-1/4-11-1/2" 1.093" 1.093" 2.080" 2.080" 1.700" 0.415" 0.415" 1.875"

C2602-04-04-02-SS Stainless Steel 1/4" 7/16-20" 7/16-20" 1/8-27" 0.203" 0.203" 0.890" 0.890" 0.660" 0.234" 0.234" 0.562"
C2602-04-04-04-SS Stainless Steel 1/4" 7/16-20" 7/16-20" 1/4-18" 0.203" 0.203" 1.030" 1.030" 0.880" 0.234" 0.234" 0.750"
C2602-08-08-06-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 3/8-18" 0.422" 0.422" 1.230" 1.230" 1.020" 0.305" 0.305" 0.875"
C2602-08-08-08-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 1/2-14" 0.422" 0.422" 1.350" 1.350" 1.230" 0.305" 0.305" 1.062"
C2602-10-10-08-SS Stainless Steel 5/8" 7/8-14" 7/8-14" 1/2-14" 0.500" 0.500" 1.420" 1.420" 1.230" 0.350" 0.350" 1.062"
C2602-12-12-12-SS Stainless Steel 3/4" 1-1/16-12" 1-1/16-12" 3/4-14" 0.656" 0.656" 1.580" 1.580" 1.360" 0.350" 0.350" 1.312"
C2602-20-20-20-SS Stainless Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1-1/4-11-1/2" 1.093" 1.093" 2.080" 2.080" 1.700" 0.415" 0.415" 1.875"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
