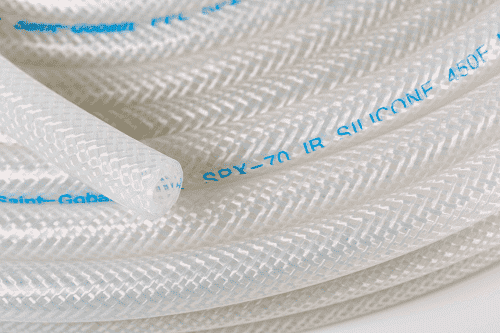

Versilon™ AB6001718 3/16" ID x 35/79" OD x 6/47" Wall (SPX-70 IB) 250' Package Length - Reinforced High Tensile Strength Silicone Tubing

AB6001718 Versilon™ by Saint Gobain | 3/16" ID x 35/79" OD x 6/47" Wall | SPX-70 IB | Reinforced High Tensile Strength Silicone Tubing | 50' Package Length

Minimum Order Quantity: 6 Boxes

Save $66.79 Save $66.79
$667.88
$667.88 - $667.88
$667.88
$601.09
$601.09 - $601.09
$601.09

Saint Gobain - Versilon™ Reinforced High Tensile Strength Silicone Tubing - Formulation SPX-70 IB

No by the foot sales. This is a Packaged Length product. 2-14 Week Lead Times.

Package Quantity: 50 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: AB6001718 Saint Gobain
Brand: Versilon
Series: SPX-70 IB
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.1875in
Outer Diameter: 0.443in
Tubing Construction: Silicone
Applicable Specs & Approvals: FDA 21 CFR Part 177.2600 , NSF 51
Application: Beverage Dispensing, Cosmetic Production, Food & Dairy Processing, High Temp Chemical Processing, Sanitary Fitting Assembly, Sterile Filling & Processing, Water Purification Systems SAE Rating: N/A
Other Ratings: N/A Tube: Silicone
Reinforcement: Braided Reinforcement Cover: N/A
Temperature Range: -112 deg. F (-80 deg. C) 320 deg. F (160 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR Part 177.2600, NSF 51**
Literature: Versilon™ SPX-70 IB Reinforced High Tensile Strength Silicone Tubing (PDF)
Other Features:
  • Provides resiliency, long life and durability
  • Ultra-smooth inner bore reduces risk of particulate entrapment
  • Tough braid reinforcement permits use under elevated working pressures
  • Taste and odor free
  • Temperature resistant from -112 deg. F to 320 deg. F
  • WARNING: Versilon™ SPX-70 IB Reinforced High Tensile Strength Silicone Tubing is not intended as an implant material.
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Min. Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Max. Working Pressure at 320 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Vacuum Rating at 320 deg. F (in. Hg) Length
AB6001718 3/16" 35/79" 6/47" 1/4" 180 PSI 175 PSI 29.9 in. Hg 29.9 in. Hg 250ft
AB6001719 1/4" 17/33" 11/83" 1/2" 145 PSI 140 PSI 29.9 in. Hg 29.9 in. Hg 250ft
AB6001720 3/8" 11/16" 5/32" 3/4" 210 PSI 190 PSI 29.9 in. Hg 29.9 in. Hg 250ft
AB6001721 1/2" 72/85" 17/98" 1" 185 PSI 165 PSI 29.9 in. Hg 29.9 in. Hg 250ft
AB6001722 5/8" 49/50" 11/62" 1-1/2" 135 PSI 125 PSI 29.9 in. Hg 29.9 in. Hg 250ft
AB6001671 3/4" 1-3/20" 1/5" 2-1/4" 170 PSI 105 PSI 29.9 in. Hg 29.9 in. Hg 250ft
AB6001724 1" 1-23/59" 8/41" 2-1/2" 105 PSI 75 PSI 29.9 in. Hg 29.9 in. Hg 250ft
AB6421725 1-1/4" 1-7/11" 11/57" 4-1/4" 80 PSI 65 PSI 25.0 in. Hg 20.0 in. Hg 250ft
AB6421726 1-1/2" 1-9/10" 1/5" 5-1/4" 70 PSI 45 PSI 10.0 in. Hg 10.0 in. Hg 250ft
* Working pressures are calculated at a 1:4 ratio relative to burst pressure using ASTM D1599 ** Only US Manufacturing sites are NSF compliant. For EU manufacturing sites, NSF compliance is in progress. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
