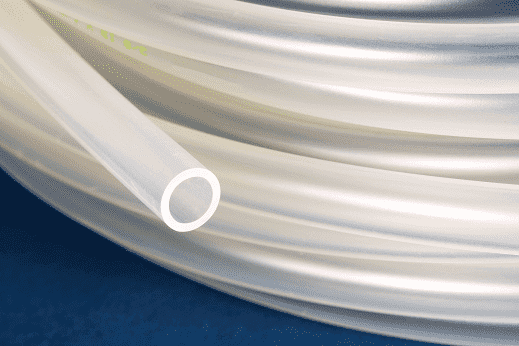

Versilon™ AE300053 3/4" I.D. x 1" O.D. x 1/8" Wall (Formulation 2001) 50' Package Length - Tubing

AE300053 Versilon™ by Saint Gobain | 3/4" I.D. x 1" O.D. x 1/8" Wall | Formulation 2001 | Tubing | 50' Package Length

Save $35.59 Save $35.59
$355.91
$355.91 - $355.91
$355.91
$320.32
$320.32 - $320.32
$320.32

Saint Gobain - Versilon™ Tubing - Formulation 2001

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: AE300053 Saint Gobain
Brand: Versilon
Series: Formulation 2001
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.75in
Outer Diameter: 1in
Tubing Construction: Polyolefin
Applicable Specs & Approvals: Applicable FDA Requirements, FDA 21 CFR Part 177.2600

SPECIFICATIONS

Application: Chemical Transfer, Perstaltic Pumps, Soap and Detergent Dispensing, Ink Transfer, Water Purification Lines, Food and Beverage, Analytical Instruments, Ideal for Condensers, Incubators, Desiccators, Gas and Drain Lines SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -108 deg. F (-78 deg. C) - 135 deg. F (57 deg. C) (Low Temp. Flexibility: -100 deg. F (-73 deg. C)) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR, 177.2600
Literature: Versilon® Tubing - Formulation 2001 (PDF)
Other Features:
  • Plasticizer and oil free - does not contaminate fluids
  • Superior flex life in perstaltic pumps
  • Chemically resistant to a wide range of fluids
  • Clear for easy visual flow monitoring

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Suggested Working Pressure at 73 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Length
AE300003 1/16" 3/16" 1/16" 1/4" 45 PSI 29.9 in. Hg 50ft
AE300007 1/8" 1/4" 1/16" 1/2" 30 PSI 29.9 in. Hg 50ft
AE300012 3/16" 5/16" 1/16" 1/2" 22 PSI 29.9 in. Hg 50ft
AE300017 1/4" 3/8" 1/16" 1" 17 PSI 29.9 in. Hg 50ft
AE300022 5/16" 7/16" 1/16" 1-1/2" 14 PSI 25.0 in. Hg 50ft
AE300027 3/8" 1/2" 1/16" 2" 12 PSI 15.0 in. Hg 50ft
AE300038 1/2" 3/4" 1/8" 1-1/2" 16 PSI 29.9 in. Hg 50ft
AE300046 5/8" 7/8" 1/8" 2-1/2" 13 PSI 25.0 in. Hg 50ft
AE300053 3/4" 1" 1/8" 3" 11 PSI 15.0 in. Hg 50ft
AE300064 1" 1-3/8" 3/16" 3-3/4" 13 PSI 17.0 in. Hg 50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
