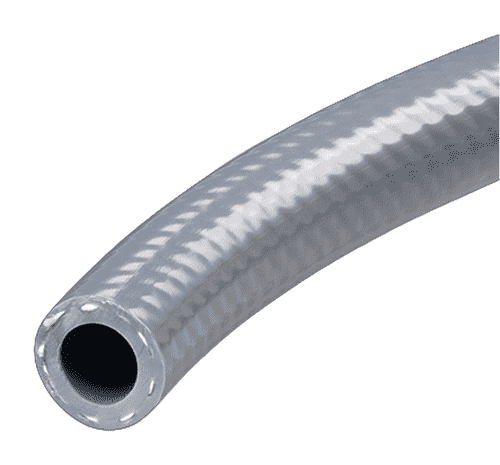

A1148-06X500 Kuri-Tec by Kuriyama | A1148 Series | Special Purpose Air Hose | Grey | 3/8" ID | .520" OD | PVC | Polyurethane | 500ft Length

A1148-06X500 Kuri-Tec by Kuriyama | A1148 Series | Special Purpose Air Hose | Grey | 3/8" ID | .520" OD | PVC | Polyurethane | 500ft Length

Save $47.41 Save $47.41
$540.74
$540.74 - $540.74
$540.74
$493.33
$493.33 - $493.33
$493.33

Kuriyama Kuri Tec® Series A1141 Special Purpose PVC/Polyurethane Air Hose - Grey This special blended hose is ideal for general air and water applications that need to operate at higher temperatures than traditional PVC hoses.

Package Quantity: 500 FT

Specifications for Variant SKU: A1148-06X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: A1148 Series
Hose Color(s): Grey
Internal Diameter: 0.375in
Outer Diameter: 0.52in
Tubing Construction: PVC/Polyurethane Blend
Cover Construction: PVC/Polyurethane Blend
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: Transfer of air and water, Induction welding tubing lines, Ideal for applications in rugged or higher temperature environments, Injection molding coolant lines, Transfer of deionized water, Transfer of transmission and power steering fluids, Lubrication/air drop lines,Robotic and pneumatic air lines, Automotive assembly line air hoses SAE Rating: N/A
Other Ratings: N/A Tube: Grey PVC/polyurethane alloy
Reinforcement: High tensile strength yarn. Cover: PVC/polyurethane alloy
Temperature Range: 0 deg. F (-18 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • Grey core tube has excellent cut resistance - complies with RMA's Class A designation for high oil resistance.
  • Highly abrasion-resistant alloy jacket.
  • Smooth, non-marking pin-pricked cover.
  • Good flexibility over a wide temperature range.
  • Good fitting retention at elevated temperatures.
  • Silicone-free.
  • One-piece lengths.
  • RoHS(15) compliant.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Reel
A1148-04X500 1/4" 6.5mm .460" 11.7mm 300 PSI 200 PSI 500 ft. 37 lbs.
A1148-06X500 3/8" 9.5mm .625" 15.9mm 300 PSI 200 PSI 500 ft. 67 lbs.
A1148-08X500 1/2" 12.7mm .770" 19.6mm 300 PSI 200 PSI 500 ft. 88 lbs.
A1148-12X300 3/4" 19.0mm 1.060" 26.9mm 300 PSI 150 PSI 300 ft. 79 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
