A1317-16X300 Kuri-Tec by Kuriyama | A1317 Series | Heavy Duty Reinforced Water Hose | 1" ID | 1.297" OD | PVC | 300ft Length

A1317-16X300 Kuri-Tec by Kuriyama | A1317 Series | Heavy Duty Reinforced Water Hose | 1" ID | 1.297" OD | PVC | 300ft Length

Save $66.67 Save $66.67
$666.67
$666.67 - $666.67
$666.67
$600.00
$600.00 - $600.00
$600.00

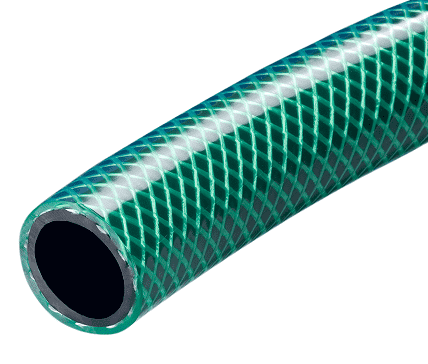

Kuriyama Kuri Tec® Series A1317 Heavy Duty Reinforced PVC Water Hose An all-purpose heavy duty PVC hose that's ideal for golf courses, parks and construction projects.

Package Quantity: 300 FT

Specifications for Variant SKU: A1317-16X300 Kuriyama | 300 |
Brand: Kuri Tec
Series: A1317 Series
Hose Color(s): Green
Internal Diameter: 1in
Outer Diameter: 1.297in
Tubing Construction: PVC
Cover Construction: PVC

SPECIFICATIONS

Application: Golf course water lines, Heavy duty washdown, Heavy duty commercial and construction use, Municipal maintenance and park departments, Irrigation supply lines. SAE Rating: N/A
Other Ratings: N/A Tube: Smooth black PVC compound
Reinforcement: High tensile strength yarn Cover: Smooth transparent green PVC compound
Temperature Range: +25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Higher working and burst pressures.
  • Abrasion-resistant cover.
  • Good resistance to weather aging.
  • Silicone-free.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils
A1317-12X300 3/4" 19.1mm 1.025" 26.0mm 125 PSI 50 PSI 300 ft. 65 lbs.
A1317-16X300 1" 25.4mm 1.297" 32.9mm 125 PSI 50 PSI 300 ft. 90 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
