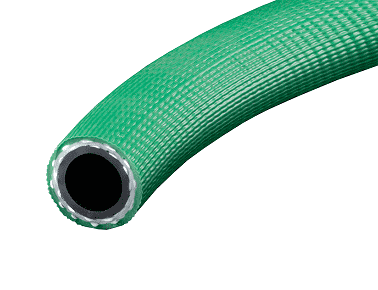

A1687-06X400 Kuri-Tec by Kuriyama | A1687 Series | Blend Reinforced Spray Hose | Green | 3/8" ID | .650" OD | 800 PSI | PVC/Polyurethane | 400ft Length

A1687-06X400 Kuri-Tec by Kuriyama | A1687 Series | Blend Reinforced Spray Hose | Green | 3/8" ID | .650" OD | 800 PSI | PVC/Polyurethane | 400ft Length

Save $69.33 Save $69.33
$693.33
$693.33 - $693.33
$693.33
$624.00
$624.00 - $624.00
$624.00

Kuriyama Kuri Tec® A1687 Series 800 PSI PVC/Polyurethane Blend Reinforced Spray Hose Unique PVC/polyurethane blended core provides excellent resistance to hydrocarbon-based tree spray, lawn care and pest control chemicals. Reinforced with high tensile strength yarn. PVC ribbed cover provides abrasion resistance.

Package Quantity: 400 FT

Specifications for Variant SKU: A1687-06X400 Kuriyama | 400 |
Brand: Kuri Tec
Series: A1687 Series
Hose Color(s): Green
Internal Diameter: 0.375in
Outer Diameter: 0.65in
Tubing Construction: PVC/Polyurethane Blend
Cover Construction: Ribbed PVC
Special Properties: Pin Pricked Hose Cover, Ribbed Hose Cover
Application: Tree and orchard spraying, Agricultural spraying, Commercial weed spraying SAE Rating: N/A
Other Ratings: N/A Tube: Black PVC/polyurethane blend
Reinforcement: High tensile strength yarn two-pass spiral construction. Cover: Ribbed PVC.
Temperature Range: +15 deg. F (-10 deg. C) to +160 deg. F (+70 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Extremely tough and kink resistant.
  • PVC/polyurethane blended core - provides better chemical resistance than comparable all-PVC hoses.
  • Ribbed cover provides excellent abrasion resistance.
  • 800 PSI working pressure.
  • Pin-pricked cover vents vapor - helps prevent ballooning.
  • Silicone-free.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coil
A1687-06X300 3/8" 9.5mm .650" 16.5mm 800 PSI 450 PSI 300 ft 41 lbs.
A1687-06X400 3/8" 9.5mm .650" 16.5mm 800 PSI 450 PSI 400 ft 54 lbs.
A1687-08X300 1/2" 12.7mm .850" 21.6mm 800 PSI 450 PSI 300 ft 68 lbs.
A1687-08X400 1/2" 12.7mm .850" 21.6mm 800 PSI 450 PSI 400 ft 90 lbs.
A1687-10X300 5/8" 15.9mm 1.030" 26.2mm 800 PSI 400 PSI 300 ft 96 lbs.
A1687-12X300 3/4" 19.1mm 1.170" 29.7mm 800 PSI 400 PSI 300 ft 126 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Note: Use of hydraulic or reusable-type fittings are not recommended for coupling Kuri Tec® hose products. Hose claims involving use of these fittings will be disallowed.

Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
