A23-6x6 Couplamatic A Series Coupling - SAE 45° Seat - 90° Female Swivel - 3/8" Hose ID - 5/8x18 Thread

A23-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 5/8x18 Thread SAE 45° Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $1.25 Save $1.25
$11.24
$11.24 - $11.24
$11.24
$9.99
$9.99 - $9.99
$9.99

Couplamatic Systems Inc.
A Series - SAE 45° Seat - 90° Female Swivel
Specifications for Variant SKU: A23-6x6 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female SAE 45 Flare, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

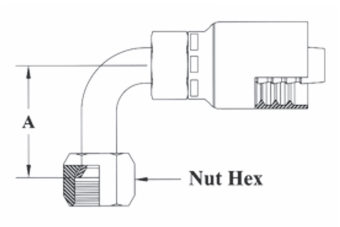

Part Number Hose ID Thread Size Tube OD A - Drop Inches Nut Hex Cross Reference Part Numbers
Weatherhead Z
A23-6x6 3/8" 5/8x18 3/8" 0.91" 3/4" 06Z-446

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
