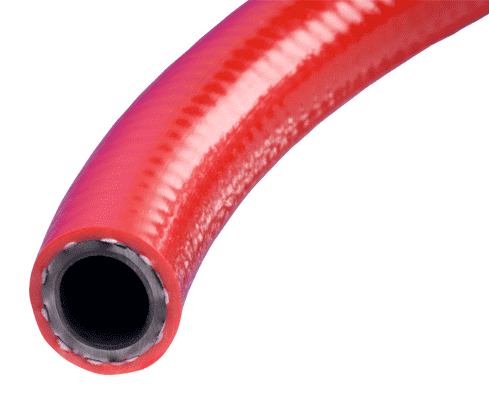

A4164-08X100 Kuriyama Kuri Tec A4164 Series Conductive PVC Air Hose with PVC Cover - Red - 1/2" ID - .813" OD - 100ft

A4164-08X100 Kuri-Tec by Kuriyama | A4164 Series | Conductive Air Hose with Cover | Red | 1/2" ID | .813" OD | PVC | 100ft Length

Save $20.77 Save $20.77
$210.37
$210.37 - $210.37
$210.37
$189.60
$189.60 - $189.60
$189.60

Kuriyama Kuri Tec®A4164 Series Conductive PVC Air Hose with PVC Cover Uniquely different PVC air hose that prevents static build-up without the need of a static wire.

Package Quantity: 100 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: A4164-08X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: A4164 Series
Hose Color(s): Red
Internal Diameter: 0.50in
Outer Diameter: 0.813in
Tubing Construction: Conductive PVC
Cover Construction: PVC
Special Properties: Conductive Tube

SPECIFICATIONS

Application: In-plant air service where static dissipation is required, Air lines for painting equipment, Applications requiring the use of grounded pneumatic tools. SAE Rating: N/A
Other Ratings: N/A Tube: Co-extruded electrically-conductive PVC
Reinforcement: Spiral polyester yarn. Cover: Red weather resistant PVC.
Temperature Range: +14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Continuous flexible conductive liner assures contact with fittings, without special preparation or clamping techniques.
  • No wires to break when the hose is flexed.
  • Distinctive color and branding allows easy identification.
  • Silicone-free.
  • One-piece lengths.
  • Branded as "Conductive Air".
  • Non-marking non-perforated cover.
Electrical Data:
  • Resistance is less than 100,000 ohms per foot when tested with an ohmmeter, with normal open-circuit output voltage of 500 VDC.
  • Note: Conductivity is through the inner liner only. To dissipate static electricity, the hose must be fitted with a grounded conductive coupling. When measured through the wall of the hose, the product demonstrates electrical insulation.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
A4164-04X100 1/4" 6.5mm .500" 12.7mm 300 PSI 180 PSI 100 ft Coil 8 lbs.
A4164-04X500 1/4" 6.5mm .500" 12.7mm 300 PSI 180 PSI 500 ft Reel 44 lbs.
A4164-06X100 3/8" 9.5mm .625" 15.9mm 300 PSI 180 PSI 100 ft Coil 11 lbs.
A4164-06X500 3/8" 9.5mm .625" 15.9mm 300 PSI 180 PSI 500 ft Reel 58 lbs.
A4164-08X100 1/2" 12.7mm .813" 20.7mm 300 PSI 180 PSI 100 ft Coil 18 lbs.
A4164-08X500 1/2" 12.7mm .813" 20.7mm 300 PSI 180 PSI 500 ft Reel 93 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
