A540CSB0251 by Dixon Valve | A540-Series | Ground Clamp and Junction Box | 24VDC

A540CSB0251 by Dixon Valve | A540-Series | Ground Clamp and Junction Box | 24VDC

Save $180.69 Save $180.69
$1,758.41
$1,758.41 - $1,758.41
$1,758.41
$1,577.72
$1,577.72 - $1,577.72
$1,577.72

Dixon Valve

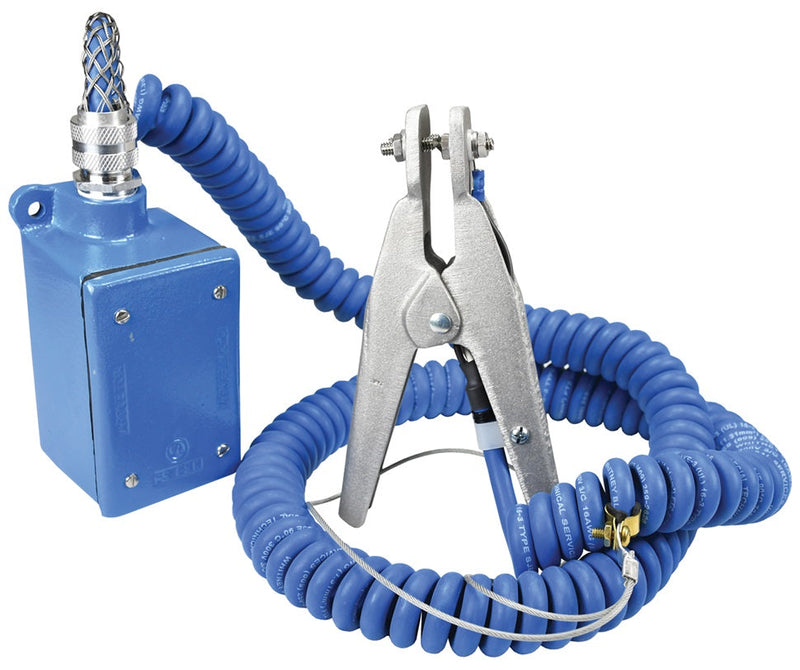

A540-Series Ground Clamp and Junction Box

Applications:
-Tank truck and railcar loading facilities.
-Drum and barrel filling sites.
-Loading of stationary tanks.
Specifications for Variant SKU: A540CSB0251 Dixon
Series: A540-Series
Features:
  • Clamp is tethered to the cable by a stainless steel strap that protects the connection from strain and wear.
  • Pull-out resistant cord grip on junction box holds cable tighter the harder it is pulled.
  • Junction box creates convenient service point for hazardous location installations.
  • Coiled cable provides compact storage.
  • Strong clamping force penetrates grime and remains connected during loading process.
  • Provides ground and a ground-verification signal in a single clamp.
  • Includes high-durability cable and junction box.
Installation:
  • Installation must be completed by a qualified professional. A540-Series ground clamps are suitable for installation and use in ordinary and specific hazardous locations as defined by NEC NFPA70 and IECEx standard 60079.
Safety Notes:
  • 1. Verify process controller is powered on and idle.
  • 2. Test the controller’s operation by clamping to a known grounded piece of metal. Verify the controller’s indicator changes from RED to GREEN. Remove the clamp from the test point.
  • 3. Before any other electrical connections are made, secure the A540 clamp to the process connection that is to be loaded.
  • 4. Verify the process controller’s indicator changes from RED to GREEN.
  • 5. Complete any other process connections.
  • 6. Once all other safety measures are active, begin the loading process.
  • 7. Once loading is complete, remove all other process connections, then the A540 last.
  • 8. Return the A540 clamp to the isolated storage facility, verifying the indicator remains red.
Specifications:
  • Ingress protection: weatherproof, raintight, and dust tight.
  • Conduit entries: one 3/4” trade size hole and a factory-installed cable on the bottom.
  • Suitable for installation in hazardous locations: Class I, Division 1 & 2, Groups B, C, and D hazardous locations, Class II, Division 1 & 2, Groups E, F, and G hazardous locations and Class III hazardous locations.
  • Suitable for connection to hazardous locations: Class I, Division 1 & 2, Groups A, B, C, and D hazardous locations and Class I, Zone 0, 1 & 2, Groups IIC, IIB, and IIA hazardous locations.
  • Recommended wire between controller and the clamp: 18 GA stranded copper wire (THHN).
  • Extended working length of cable: 30 feet.
Part Number Description
A240120 Ground Clamp and Junction Box, 24VDC
