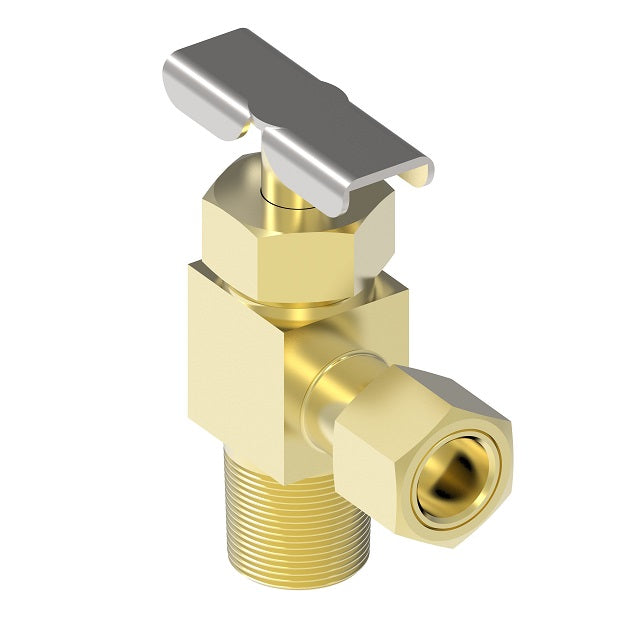

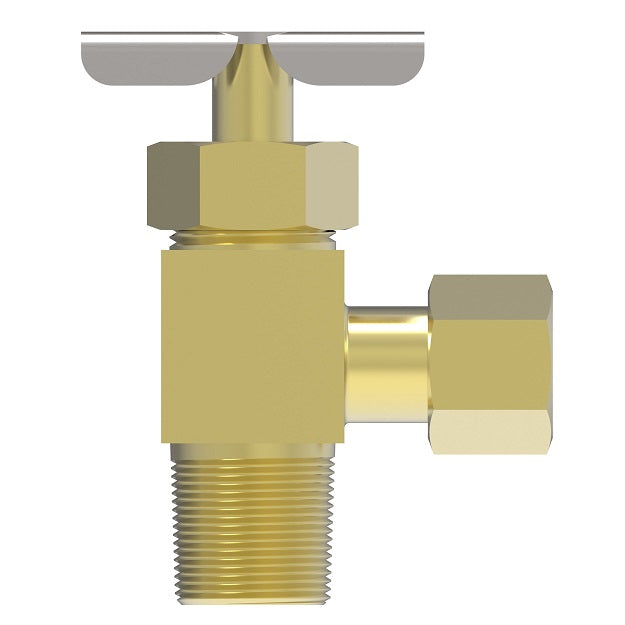

A555 by Danfoss | Needle Valve | Compression Angle | 90° Elbow | 1/4" Tube OD x 1/8" Male NPTF | Brass

A555 by Danfoss | Needle Valve | Compression Angle | 90° Elbow | 1/4" Tube OD x 1/8" Male NPTF | Brass

$14.96 - $14.96

$14.96

$14.96 - $14.96

$14.96

Aeroquip® by Danfoss
Needle Valve - Compression Angle

Quantity

Specifications for Variant SKU: A555 Danfoss
Shape (Orientation):	90 Degree
Material(s):	Brass

Applications:
Instrumentation, hydraulic and pneumatic systems.
Advantages:
Metal-to-metal seat, with fine thread screw down, enables valves to seat positively, adjust easily and hold to any amount of flow up to capacity of the valve.
Used With:
Copper, aluminum, steel and plastic tubing where applicable.
Material:
Brass bodies, steel handles except where noted. Polyline valves have brass bodies and brass handles.
Pressure:
150 psi maximum. (Does not include plastic tubing.)
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with metal tubing. For valves using compatible tubing, refer to the tubing temperature range.
Conformance:
Designed for automotive and industrial use. Not intended for natural gas, LPG, nuclear or aircraft applications.
Assembly Instructions:
Install with the pressure against the seat. Inspection of a straight valve discloses one opening to be higher than the other. Pressure should always be directed against the seat in angle valves, not the stem threads.


Brass Part Number	Brass Selfalign Part Number	Tube OD	Male Pipe Thread	L	M	M1	N
A6845	-	3/16"	1/8"	1.50"	0.82"	1.07"	0.50"
A555	A555S	1/4"	1/8"	1.53"	0.83"	1.05"	0.61" (A555S: 0.53")
A6855	A6855S	5/16"	1/4"	1.73"	0.92"	1.28"	0.69"

"S" suffix designates Selfalign with nuts and sleeves.
