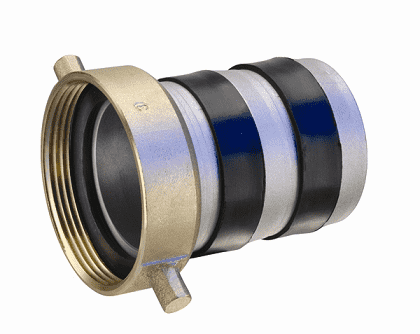

ABF-LF150 by Kuriyama | Pin Lug 1-1/2" Hose Shank with Brass Swivel Nut 1-1/2" Female NPSM Thread | Aluminum

ABF-LF150 by Kuriyama | Pin Lug 1-1/2" Hose Shank with Brass Swivel Nut 1-1/2" Female NPSM Thread | Aluminum

Save $3.17 Save $3.17
$11.10
$11.10 - $11.10
$11.10
$7.93
$7.93 - $7.93
$7.93

Kuriyama Couplings™ - EZ-Seal Leak Resistant Couplings - Aluminum Pin Lug Hose Shank with Brass Swivel Nut Female NPSM Threads

Specifications for Variant SKU: ABF-LF150 Kuriyama
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Hose Barb, 1-1/2in Male NPSM
Material(s): Aluminum, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals, Petroleum, Construction, Material Handling
  • Ideally Suited for Layflat Hoses
  • For use with Kuriyama Hoses
Features:
  • Rubber seals - Help prevent leakage.
  • Interchangeability - Part C & E conform to Mil Spec A-A-59326.
  • Versatile - Suitable for use with other PVC and Rubber Hoses.
  • Note: To insure proper sealing attach band clamps directly over rubber seals.
Materials:
  • Aluminum; ASTM B85 Grade 383
Part Number Size Weight (Lbs.)
ABF-LF150 1-1/2 x 1-1/2" 0.37 lbs
ABF-LF200 2" x 2" 0.58 lbs.
ABF-LF300 3" x 3" 1.16 lbs.
ABF-LF400 4" x 4" 2.01 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
